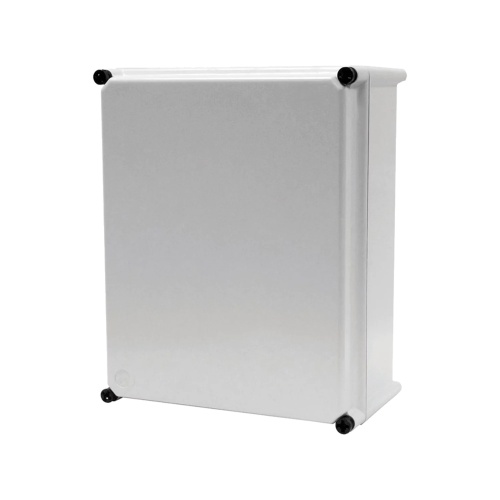

nVent Hoffman A12-2424HPL4 Non-Metallic Modular Polyester Enclosure
Normally In Stock
Code: 216618
nVent Hoffman A12-2424HPL4 Enclosure 23.78 x 23.78 x 6.89 inch(HxWxD) standard APO Modular polyester enclosure hinged door with 4 padlockable clamp style latches with opaque cover. All APO Series enclosures have the capability to be horizontally or vertically coupled by means of gasketed coupling collars. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$1130.04
Sale Price
$941.70
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A12-2424HPL4 Enclosure 23.78 x 23.78 x 6.89 inch(HxWxD) standard APO Modular polyester enclosure hinged door with 4 padlockable clamp style latches with opaque cover. All APO Series enclosures have the capability to be horizontally or vertically coupled by means of gasketed coupling collars.
Specifications
Enclosure Depth
6"
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Lock Type
Padlocking
Enclosure Latch Type
Clamp
Enclosure Composition
Polyester
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Height
24"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Width
14"
Component
Non-Metallic Enclosure
Enclosure Number of Doors
1 Door
Manufacturer
Hoffman
Features
Gaskets are made from continuously poured polyurethane foam
Bases and covers are made from hot compression molded halogen free, self extinguishing fiberglass reinforced polyester (FRP) that can withstand continuous temperatures up to 158°F (70°C) and momentary exposure to 302°F (150°C)
All enclosures can be easily modified to customer specifications
Brass M4 threaded inserts are factory installed for mounting plate attachment
Enclosures are maintenance free and corrosion resistant
Available sized from 7x6 (178x152mm) to 24x24 (610x610mm)
4 to 6 bosses suitable for M6 threaded inserts are molded into the base (dependant on enclosure size).
Maintain UL / CSA Type 4x with up to 5 extension collars
