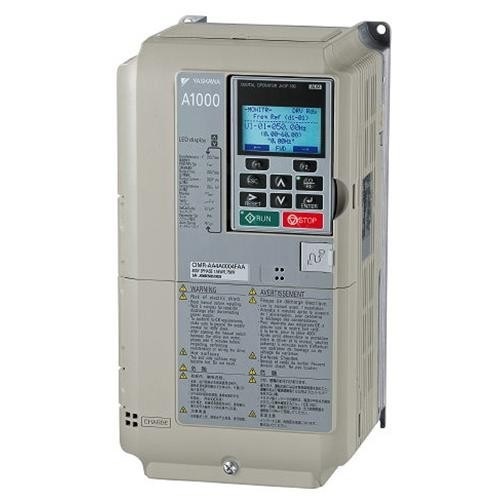

Yaskawa CIMR-AU5A0004FAA Variable Frequency Drive
Normally In Stock
Code: 21541
Yaskawa CIMR-AU5A0004FAA Variable Frequency Drive A1000 AC Drive 500-600 VAC Constant Torque with input options of either Three Phase: 3 Hp 3.9 Amp or (Single Phase: 1.5 Hp 2.4 Amp) Industrial VFD. Nema 1 Chasis 11.81" x 5.51" x 5.79" includes configurable LCD display and keypad with built in memory for backup. Includes 3 Analog inputs, 2 programmable Analog outputs, 8 programmable Digital inputs with 1 can be used as pulse input, 4 digital outputs. WE RECCOMEND Line and Load Reactors for all VFD's. Line (Input) Reactors reduce hamonics generated going back into the line and protect the VFD from input power disturbances that can trip and damage drives. *We recommend adding a reactor to mitigate harmonics and protect the drive from surges.
Condition: New
Usually ships Same Day or Next Day$1732.99
Sale Price
$1444.16
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Yaskawa CIMR-AU5A0004FAA Variable Frequency Drive A1000 AC Drive 500-600 VAC Constant Torque with input options of either Three Phase: 3 Hp 3.9 Amp or (Single Phase: 1.5 Hp 2.4 Amp) Industrial VFD. Outstanding performance Constant Torque producing up to 200% troque, Autotuning automatically compensates for changes in motor temperature, Inertial autotune automatiocally sets gains for speed and torque loops, Dead-Time compensation drastically reduces torque ripple, High Frequency Injection enables high precision control without feedback. Easy to configure for simple or complex applications with it's Application Wizard. LCD display and keypad for local field access. Built in memory, parameter storage and application presets. with monitoring and diagnostic panels. Preventative maintenance monitors, highly reliable and easily replaced cooling fans, removable I/O terminal board, auxilary control power input for network communication and ebedded functional safety. PID control regulates the process variable, Droop control automatically adjusts motor slip, function block programming for your application of choice.
Specifications
VFD Torque
Constant Torque
VFD Application
Compressor
VFD Application
Conveyor
VFD Application
Positive Displacement Pump
VFD Application
Mixer
VFD Application
Hoist
VFD Application
Traction Drive
VFD Control Panel
LCD With Keypad
VFD Horsepower Output
3 HP
VFD Amperage Output
3.9 Amp
Drive Type
Basic
VFD Frame Type
A1000
Manufacturer
Yaskawa
VFD Input Voltage
600 Volt Three Phase
VFD Output Voltage
600 Volt Three Phase
VFD NEMA-IP Rating
Chassis Protected NEMA 1
VFD Line
CIMR-AU
Features
Closed or open loop vector control for outstanding regulation, torque production, and position control capability.
Continuous Auto-tuning optimizes performance by compensating for changes in motor temperature.
High Frequency Injection enables high precision open loop control of Interior Permanent Magnet Motors.
Fast acting current and voltage limiters help achieve continuous drive operation during periods of excessive demand.
High Slip Braking reduces installation cost and the need for dynamic braking resistors
Communication options for all major industrial networks provides high speed control and monitoring, reducing installation cost.
DriveWizard computer software and Application Sets for easy configuration.
Auxiliary Control Power Unit maximizes production time and efficiency by maintaining network communication while main power is removed.
Embedded Safe Torque Off minimizes downtime for applications requiring occasional intervention (SIL CL2, PLd, Category 3).
Embedded function blocks, programmable with DriveWorks EZ, provide additional application flexibility and the opportunity to eliminate separate controllers.
USB Copy Unit and Keypad configuration storage provide speed and convenience for duplicate configuration of multiple drives.
Removable terminal board with configuration storage provides convenience of configuration backup.
Made with RoHS compliant materials.
Integrated DC Reactor (standard on 30HP and larger) for input harmonic reduction.
Kinetic Energy Braking allows drive to remain in control during momentary power losses.
Integrated 12 Pulse version provides a cost effective solution for low harmonics.
Flange version provides NEMA 12 backside integrity when mounting with heatsink external.
Downloads
Yaskawa CIMR-AU5A0004FAA 2D CAD Drawing.pdfYaskawa CIMR-AU5A0004FAA CSA Certification.pdfYaskawa CIMR-AU5A0004FAA Electrical Diagram.pdfYaskawa CIMR-AU5A0004FAA EU Certification.pdfYaskawa CIMR-AU5A0004FAA Quick Start Procedure.pdfYaskawa CIMR-AU5A0004FAA Spec Sheet.pdfYaskawa CIMR-AU5A0004FAA Technical Manual.pdfYaskawa CIMR-AU5A0004FAA UL Certification Directory.pdf
