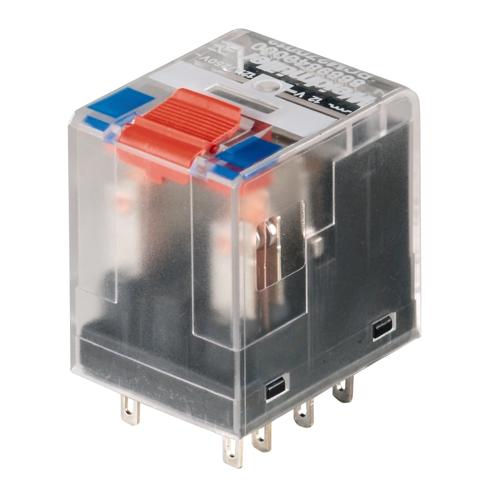

Weidmuller 8957090000 Individual Relay 3PDT 10 Amp

Weidmuller 8957090000 - Introducing RIDERSERIES, the ultimate choice for reliable signal separation in industrial automation. These high-quality relay modules are designed to meet the demands of industrial applications, offering exceptional performance and thoughtful features. With their user-friendly design, conventional relays can be easily plugged in and securely mounted using retaining clips. The optional status LED and test button enhance convenience during servicing operations. RIDERSERIES relay modules are divided into two product families, both suitable for a wide range of industrial applications and boasting standard international approvals such as cURus, CSA, DNV GL, and EAC. With control voltages ranging from 12 to 230 V, switching currents from 6 to 16 A, and options for 1 to 4 changeover contacts, RIDERSERIES relays provide flexibility to meet diverse application requirements. Variants with built-in LEDs or test buttons add to their functionality. Furthermore, a comprehensive range of tailor-made accessories, including cross-connections and markers, are available to complement the RIDERSERIES relay modules. When it comes to universal industrial relays with international approval, RIDERSERIES is the trusted solution for dependable signal separation.

Specifications
Relay Throws	Double Throw
Coil Voltage Rating	12 VDC
Relay Contact Material	AgNi
Relay Poles	Three Pole
Relay Input Amperage	10 Amp
Manufacturer	Weidmuller
Relay Indication	Green LED
Component	Individual Relay
Relay Connection Type	Plug-In Connection
