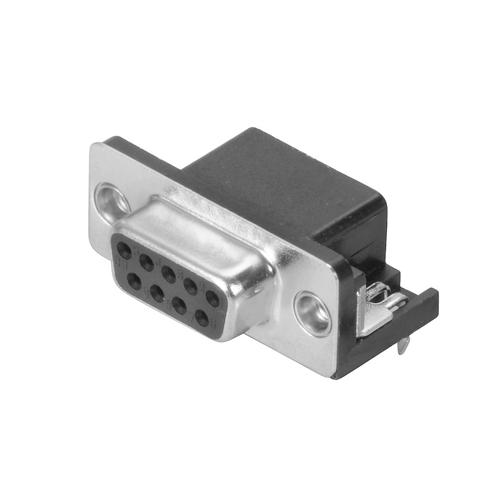

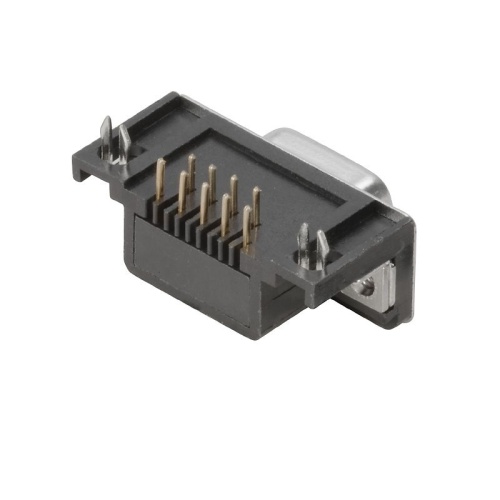

Weidmuller 2626700000 D-Sub Connector - 9 Pole
Normally In Stock
Code: 210546
Weidmuller 2626700000 - D-Sub Connector - Black - 9 Pole - 2.77 mm Pitch (MUST BUY IN PACKS OF 90)
Condition: New
Usually ships within 4 weeks. Call for ship time.$2.78
Sale Price
$2.32
MUST BUY IN PACKS OF 90
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Weidmuller 2626700000 - D-SUB connectors are available in various designs to meet different requirements. They come in 90° (horizontal) and 180° (vertical) configurations. Flange designs include drilled holes, UNC 4-40 threaded nuts, and UNC 4-40 threaded bolts. The connectors feature stamped contacts with a rated current of 3 A and are soldered using the THT process. They offer a wide range of design types, including those with snap-on clips. Packaging is done in trays. D-SUB connectors have an extended temperature range of -55°C to +85°C, ensuring optimal performance in various environments. They are designed in accordance with IEC 60807-3 (IEC 807-3) and DIN 41652 standards.
Specifications
Connector Color
Black
Manufacturer
Weidmuller
Component
PCB Data Connector
Sub Component
D-Sub Connector
Number of Poles
9 Pole
Features
The product range encompasses the following designs:
90°, lying (horizontal) and 180°, standing (vertical)
Flange design as drilled hole, UNC 4-40 threaded nut and UNC 4-40 threaded bolt
Stamped contacts (Rated current: 3 A)
THT soldering process
Wide range of different design types, also with snap-on clip

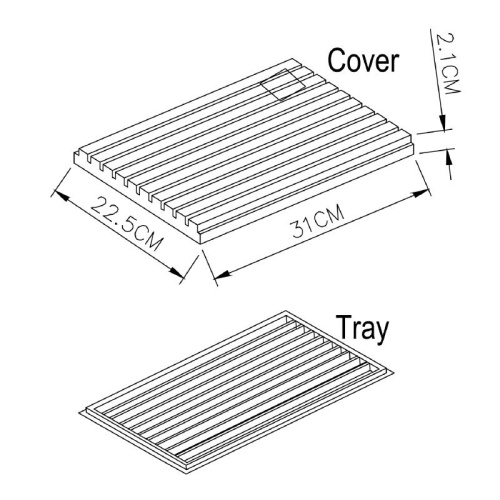

Packed in tray (TY)
Extended temperature range of –55 °C to +85 °C for maximum performance
Design in accordance with IEC 60807-3 (IEC 807-3) and DIN 41652
