Home Enclosures HMI Enclosure Systems Hoffman Slope Front HMI Enclosures Hoffman PST466 PROLINE HMI Slope Front Enclosure
Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

Downloads

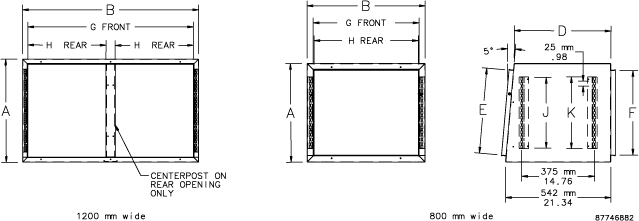

Hoffman PST466 2D DXF CAD.zip Hoffman PST466 3D STEP CAD.zip Hoffman PST466 Declaration of Compliance.pdf Hoffman PST466 Dimension Drawing.gif Hoffman PST466 EU Certification.pdf Hoffman PST466 Instruction Manual.pdf Hoffman PST466 Spec Sheet.pdf Hoffman PST466 UL Certification.pdf

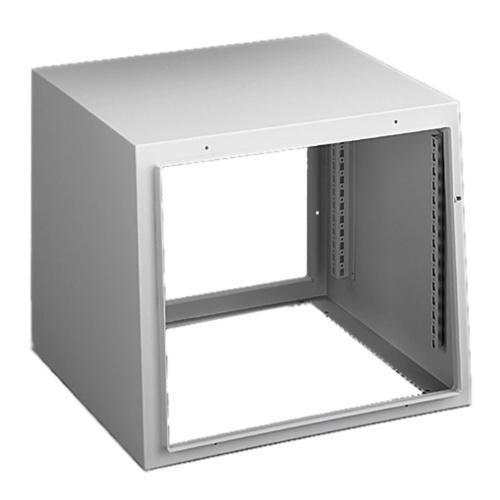

Hoffman PST466 PROLINE HMI Slope Front Enclosure

Hoffman PST466 PROLINE HMI Sloped Front Enclosure 16.04" H x 24" W x 110" D (400 x 600 x 600 mm). Painted Steel enclosure frame with full front opening with sloped front for door or cover. Rear opening for door or cover. Open bottom for options to connect to tall PROLINE frame, joined through cutout base to pedestal or pendant arm system. (DOES NOT INCLUDE BACK PANEL)
Normally In Stock! Order now!
Condition: New

Usually ships Same Day or Next Day (DOES NOT INCLUDE BACK PANEL)
Price: $3109.60
Sale Price: $2780.70
Add to JobAdd to FavoritesAdd to Quick Quote
Hoffman PST466 PROLINE HMI Enclosure Painted Steel Slope Front with front opening of 13.36"H x 21.11"W (339 x 536 mm) and rear opening of 13.21" H x 21.11" W (336 x 564 mm). Optional PROLINE frame shelf or PROLINE grid system is recommended to provide a stationary platform for supporting deep equipment. PROLINE Steel HMI Enclosures provide a comprehensive system for housing Human-Machine Interface (HMI) computers and related control devices in a corrosive environment. With these enclosures you can develop a customized solution that meets your application’s requirements exactly, including UL/CSA Type 4X protection
Specifications
HMI Environment Rating Outdoor-Indoor
HMI Door Type Solid
HMI Composition Steel
HMI Interior Color Gray
HMI Height 16.0"
HMI Width 24.0"
HMI Depth 24.0"
Manufacturer Hoffman
HMI Mount Type Pendant/Pedestal Mount
Line PROLINE
Component HMI Enclosure
HMI NEMA Rating NEMA Type 12
HMI Number of Doors 1 Door
