Code: 200251

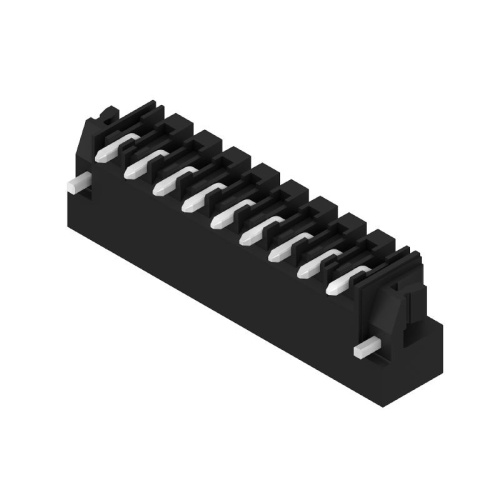

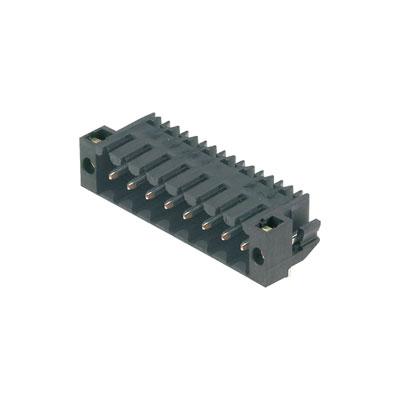

Weidmuller 1805010000 - PCB plug-in connector
Normally In Stock
Weidmuller 1805010000 - PCB plug-in connector
Condition: New
Usually ships within 4 weeks. Call for ship time.$6.13
Sale Price
$5.11
MUST BUY IN PACKS OF 48
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
PCB plug-in connector, male header, Solder flange, THT/THR solder connection, 3.50 mm, Number of poles: 9, 90°, Solder pin length (l): 1.5 mm, tinned, black, Box
Specifications
Connector Color
Black
Connector Amperage
10 Amp
Manufacturer
Weidmuller
Connector protection
IP10
Connector Voltage
300 Volt
Component
PCB Plug-In Connector
Connection Type
Board Connection
Features
High-temperature-resistant male header, 3.50 mm pitch.
Plugging direction parallel (90°), straight 180° or angled (135°) to PCB Housing variants: closed side (G), screw flange (F), solder flange (LF) or snap-on solder flange (RF) Optimised for the SMT process Pin length 3.2 mm universal for all soldering methods Pin length 1.5 mm optimised for reflow soldering methods Packed either in a box (BX) or tape-on-reel (RL) Male header can be coded
Downloads
Code: 200251
Weidmuller 1805010000 - PCB plug-in connector
$6.13
Sale Price
$5.11
MUST BUY IN PACKS OF 48
