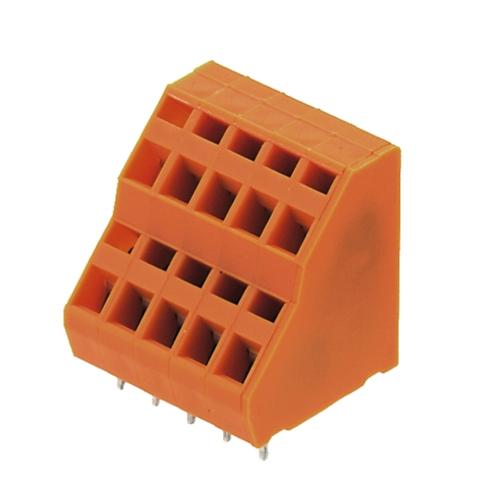

Weidmuller 1758020000 PCB Terminal - 2.5 mm² 10 Amp
Normally In Stock
Code: 198842
Weidmuller 1758020000 - 10 Amp - 300 V - Tension Clamp Connection - Orange - 2.5 mm² Cross-section (MUST BUY IN PACKS OF 20)
Condition: New
Usually ships within 4 weeks. Call for ship time.$23.84
Sale Price
$19.87
MUST BUY IN PACKS OF 20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Weidmuller 1758020000 - Weidmuller offers a comprehensive range of PCB Terminals and Connectors, including the OMNIMATE Signal and OMNIMATE Power series, designed for industrial applications with a focus on signal processing and power electronics. These terminal blocks, plug-in connectors, and panel feedthrough terminal blocks provide efficient and reliable solutions. The OMNIMATE Power series is specifically optimized for high-current applications, supporting currents up to 232 A and voltages up to 1000 V (IEC) or 230 A at 600 V (UL). With a strong emphasis on application-oriented design, these components enable efficient production and ensure reliable performance in a variety of industrial applications. Trust Weidmuller's PCB Terminals and Connectors for high-quality, dependable solutions in signal processing and power electronics.
Specifications
Connector Amperage
10 Amp
Connector Color
Orange
Connector protection
IP20
Manufacturer
Weidmuller
Component
PCB Terminal
Connector Numbers
20 Pole
Connector Size (Cross-section)
2.5 mm²
Connection Type
Tension Clamp Connection
Connector Voltoltage
300 Volt
Features
The high-performance device interface with a high connection density, for standard 2.5mm² cross-section wires.

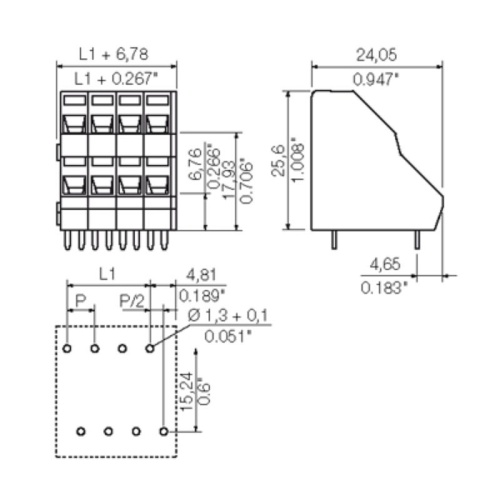

Multi-tier PCB terminal in 5.08 mm pitch, with the maintenance-free tension clamp connection in 135° outlet direction.
Rated data: 15A / 630V (IEC) or 10A / 300V (UL) 0.20 - 2.5mm² (IEC) / 26 - 14 AWG (UL) Flammability class according to UL 94: V2 Application benefits: Simple change of connection method - layout is compatible with multi-tier screw terminals.
