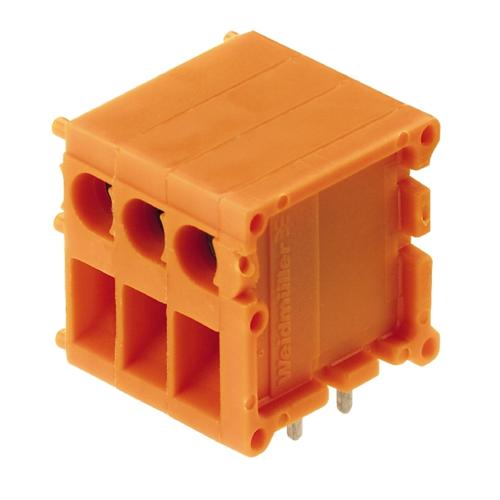

Weidmuller 1730230000 PCB Terminal - 2.5 mm² 10 Amp
Normally In Stock
Code: 198373
Weidmuller 1730230000 - 10 Amp - 300 V - Top Connection - Black - 2.5 mm² Cross-section (MUST BUY IN PACKS OF 50)
Condition: New
Usually ships within 4 weeks. Call for ship time.$8.72
Sale Price
$7.27
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Weidmuller 1730230000 - Weidmuller offers a comprehensive range of PCB Terminals and Connectors, including the OMNIMATE Signal and OMNIMATE Power series, designed for industrial applications with a focus on signal processing and power electronics. These terminal blocks, plug-in connectors, and panel feedthrough terminal blocks provide efficient and reliable solutions. The OMNIMATE Power series is specifically optimized for high-current applications, supporting currents up to 232 A and voltages up to 1000 V (IEC) or 230 A at 600 V (UL). With a strong emphasis on application-oriented design, these components enable efficient production and ensure reliable performance in a variety of industrial applications. Trust Weidmuller's PCB Terminals and Connectors for high-quality, dependable solutions in signal processing and power electronics.
Specifications
Connector Color
Black
Connector Amperage
10 Amp
Connector Material
Cuzn
Connector protection
IP20
Manufacturer
Weidmuller
Component
PCB Terminal
Connector Numbers
4 Pole
Connector Size (Cross-section)
2.5 mm²
Connection Type
Top Connection
Connector Voltoltage
300 Volt
Features

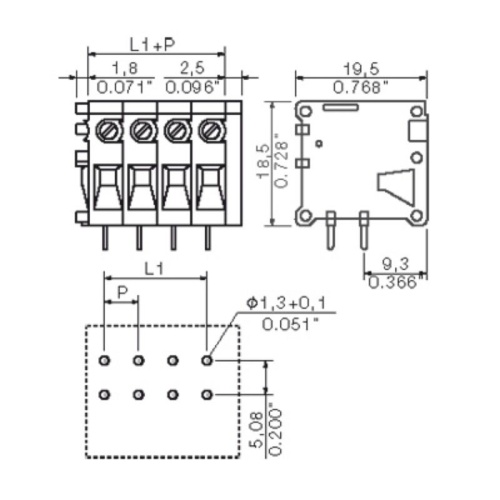

Conductor entry and screw connection in the same direction on this PCB terminal with 5.08 mm pitch for conductor cross-sections up to 2.5 mm².
Conductor outlet direction 90° and 180°.
Downloads
Engineering Data - CAD data -- STEP.stpProduct Change Notification - PCN_2016_138_PL33_Redesign_BVZ_762HP_outside_pole_spacer_EN.pdfProduct Change Notification - PCN_2016_275_PL33_plugable_SIBL_EN.pdfProduct Change Notification - PCN_2016_275_PL33_Steckbare_SIBL_DE.pdfUser Documentation - Operating Instruction BLF.pdfUser Documentation - QR-Code product handling video.eps
