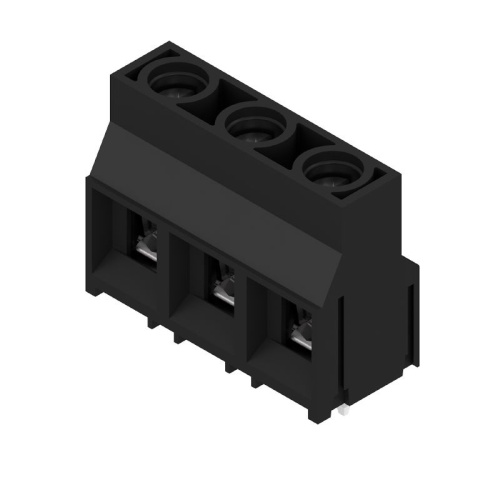

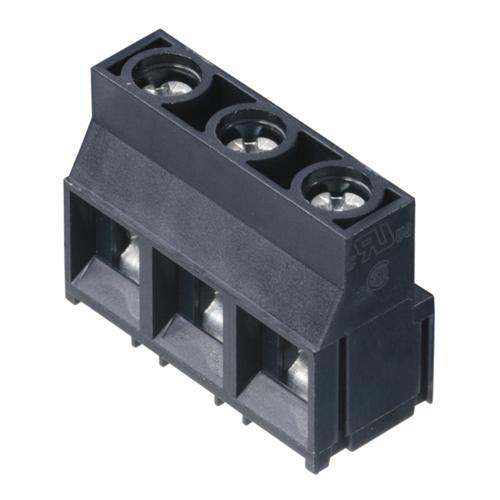

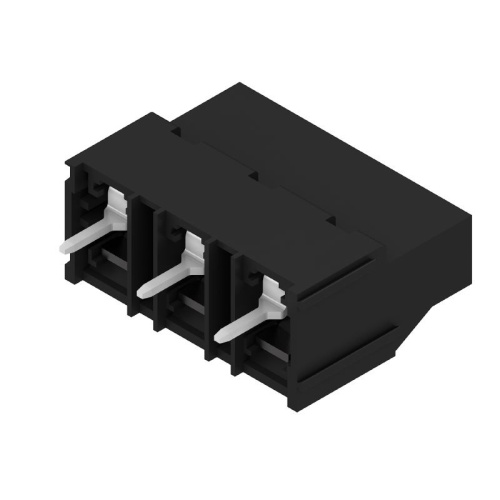

Weidmuller 1724710000 PCB Terminal - 6 mm² 30 Amp
Normally In Stock
Code: 198105
Weidmuller 1724710000 - 30 Amp - 300 V - Clamping Yoke Connection - Black - 6 mm² Cross-section (MUST BUY IN PACKS OF 100)
Condition: New
Usually ships within 4 weeks. Call for ship time.$3.20
Sale Price
$2.67
MUST BUY IN PACKS OF 100
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Weidmuller 1724710000 - Weidmuller offers a comprehensive range of PCB Terminals and Connectors, including the OMNIMATE Signal and OMNIMATE Power series, designed for industrial applications with a focus on signal processing and power electronics. These terminal blocks, plug-in connectors, and panel feedthrough terminal blocks provide efficient and reliable solutions. The OMNIMATE Power series is specifically optimized for high-current applications, supporting currents up to 232 A and voltages up to 1000 V (IEC) or 230 A at 600 V (UL). With a strong emphasis on application-oriented design, these components enable efficient production and ensure reliable performance in a variety of industrial applications. Trust Weidmuller's PCB Terminals and Connectors for high-quality, dependable solutions in signal processing and power electronics.
Specifications
Connector Color
Black
Connector Amperage
30 Amp
Connector Material
Copper Alloy
Connector protection
IP20
Manufacturer
Weidmuller
Component
PCB Terminal
Connector Size (Cross-section)
6 mm²
Connector Numbers
3 Pole
Connection Type
Clamping Yoke Connection
Connector Voltoltage
300 Volt
Features

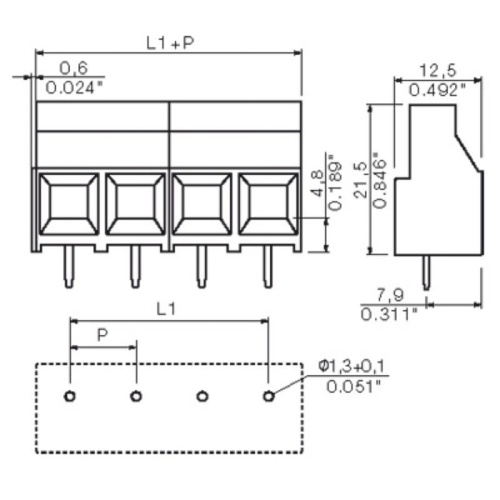

This PCB terminal provides connections for 1000 V, 6 mm² conductor cross-section and 32 A with proven clamping yoke connection at 9.52 mm pitch, conductor outlet direction in 90° design.
Downloads
Engineering Data - CAD data -- STEP.stpProduct Change Notification - 20210526 Technical change to MPS 5 and MHS 5 H.pdfProduct Change Notification - 20210526 Technische Änderung zu MPS 5 und MHS 5 H.pdfProduct Change Notification - 20210602 Technical change to MPS 5.pdfProduct Change Notification - 20210602 Technische Änderung zu MPS 5.pdfUser Documentation - Assembly instructions MPS 5 EN DE.pdfUser Documentation - QR-Code product handling video.eps
