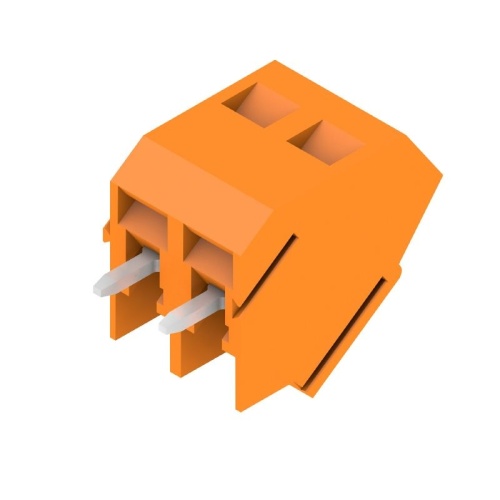

Weidmuller 1715350000 PCB Terminal - 2.5 mm² 18 Amp
Normally In Stock
Code: 197912
Weidmuller 1715350000 - 18 Amp - 300 V - Clamping Yoke Connection - Orange - 2.5 mm² Cross-section (MUST BUY IN PACKS OF 500)
Condition: New
Usually ships within 4 weeks. Call for ship time.$1.30
Sale Price
$1.08
MUST BUY IN PACKS OF 500
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Weidmuller 1715350000 - Weidmuller offers a comprehensive range of PCB Terminals and Connectors, including the OMNIMATE Signal and OMNIMATE Power series, designed for industrial applications with a focus on signal processing and power electronics. These terminal blocks, plug-in connectors, and panel feedthrough terminal blocks provide efficient and reliable solutions. The OMNIMATE Power series is specifically optimized for high-current applications, supporting currents up to 232 A and voltages up to 1000 V (IEC) or 230 A at 600 V (UL). With a strong emphasis on application-oriented design, these components enable efficient production and ensure reliable performance in a variety of industrial applications. Trust Weidmuller's PCB Terminals and Connectors for high-quality, dependable solutions in signal processing and power electronics.
Specifications
Connector Amperage
18 Amp
Connector Color
Orange
Connector Material
Copper Alloy
Connector protection
IP20
Manufacturer
Weidmuller
Component
PCB Terminal
Connector Numbers
2 Pole
Connection Type
Clamping Yoke Connection
Connector Size (Cross-section)
2.5 mm²
Connector Voltoltage
300 Volt
Features

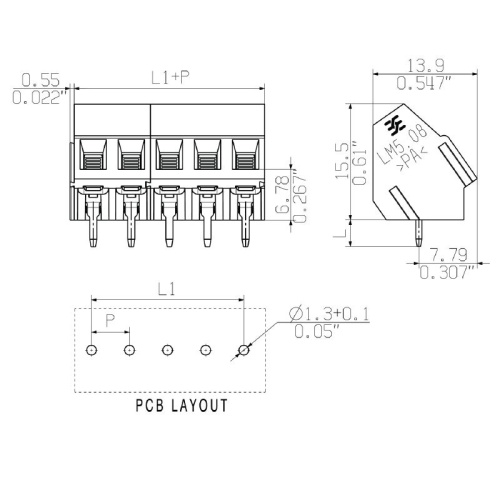

PCB terminal with proven clamping yoke connection at 5.00 and 5.08 mm pitch.
Conductor outlet direction 90°, 135° and 180°.
Suitable for conductor cross-sections up to 2.5 mm².
Downloads
Engineering Data - CAD data -- STEP.stpEngineering Data - Library and function block -- Rockwell - Studio5000.zipEngineering Data - Library and function block -- u-remote UR20 Library for CoDeSys 3.5 - EN - V2.0.0.zipProduct Change Notification - Release-Notes - Firmware.pdfSoftware - Firmware -- Archive firmware UR20-1COM-232-485-422.zipSoftware - Firmware -- Current firmware UR20-1COM-232-485-422.bsm
