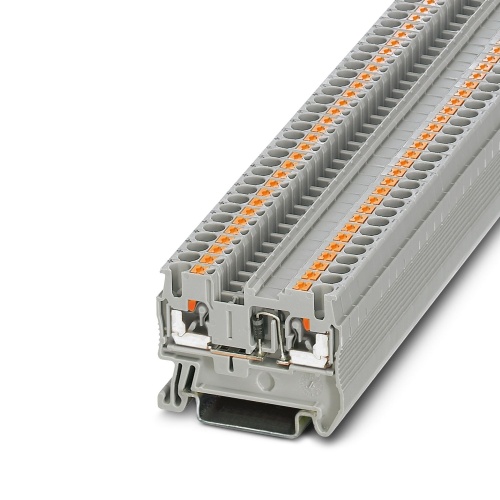

Phoenix Contact 3210224 Component terminal block PT 2,5-DIO/L-R
Normally In Stock
Code: 19387
PT 2,5-DIO/L-R Phoenix Contact 3210224 Phoenix Contact PT 2,5-MTD-DIO/L-R. Component Terminal Block 5.2mm Gray Integrated Diode (Conducting Left to Right) Single through Push-In Connection, 800V, .5A, 12-26AWG (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$7.14
Sale Price
$5.95
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3210224 The component terminal block is installed with a diode model 1N4007, which has a maximum continuous current of 0.5A and can withstand a reverse voltage of up to 1300V, featuring a push-in connection method with rated cross-sections ranging from 0.14mm2 to 4mm2, and is mounted using an NS35/7.5 or NS35/15 clip, with the device itself being a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Diode
With Diode
Terminal Block Amperage
0.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Component Terminal Block
Features
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Downloads
Phoenix 3210224 CAD data International.dxfPhoenix 3210224 CAD data International.pdfPhoenix 3210224 CAD data International.stpPhoenix 3210224 CAD Drawing.zipPhoenix 3210224 Manufacturers declaration English.pdfPhoenix 3210224 Manufacturers declaration International.pdfPhoenix 3210224 Safety note English.pdfPhoenix 3210224 Spec Sheet.pdfPhoenix 3210224 Tender Text English.zip
