Application: Designed to house a variety of electrical and electronic controls and instruments. Provisions for optional surface mounting or rack mounting of almost any type of equipment. Provides protection from dust, dirt, water and oil. The enclosures are extra deep for applications requiring more interior space. For outdoor application a drip shield and drain vent is recommended.For Details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

0.104 In. carbon steel

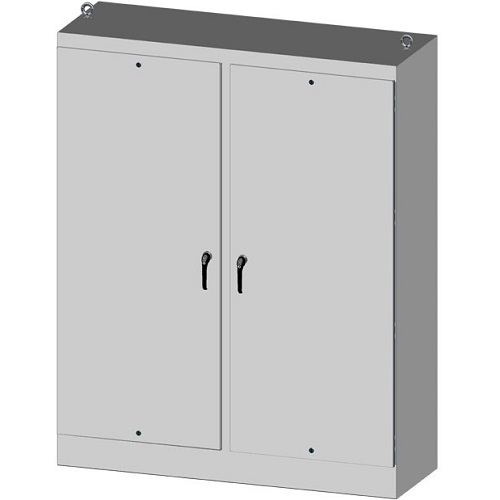

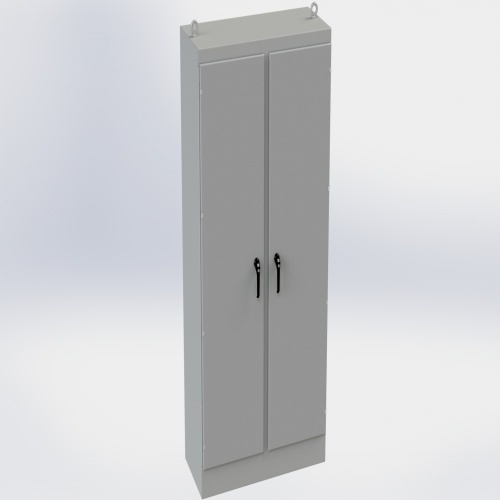

Two-Door Single Access

Removable and inchangeable doors

Seams continuously welded and ground smooth

Lifting eyes for easy handling

Black zinc die cast keylocking/padlocking handle

3-point latching mechanism

Latch rods have ramp shoes for easier door closing

Flange trough collar around all sides of door opening

Removable center post

Mounting channels welded horizontally on sides of interior body at top, bottom and middle for mounting optional panels or rack mounting angles

Pour in place oil & water resistant gasket

Ground stud on door and body

Provisions for light kit

Concealed hinges

Holes plugs provided to seal holes in bottom of enclosure

Removable print pocket.
