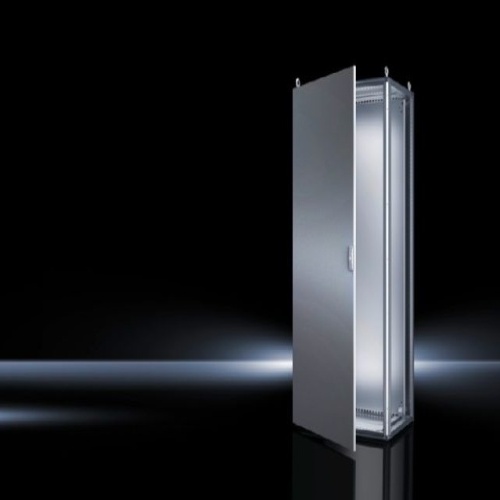

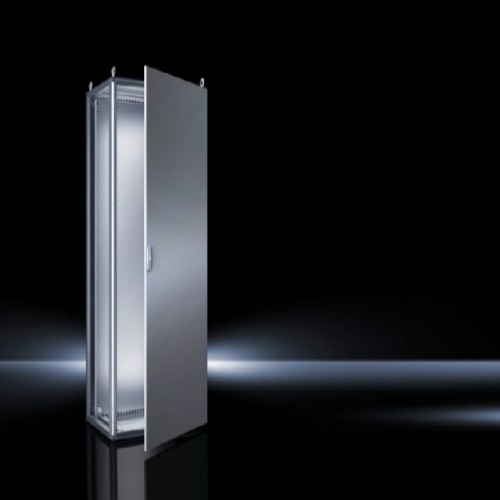

Rittal 8450680 Baying systems TS 8 IP 66/NEMA 4X
Normally In Stock
Code: 182059
Rittal 8450680 Baying systems TS 8 IP 66/NEMA 4X, Type 1, 3R, 4, 4X, 12, , 1 Door, H: 78.7 " W: 31.5 " D: 23.6 "
Condition: New
Usually ships Same Day or Next DayALL RITTAL ORDERS THAT EXCEED 50 LBS WILL SHIP FREIGHT.
*NON-CANCELLABLE, NON-RETURNABLE*
$11828.71
Sale Price
$9857.26
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Rittal 8450680 Stainless steel Enclosure, TS 8 stainless-steel baying systems 1.4301, (AISI 304), incl. Backplate. Complies with protection category IP 66, NEMA 4X., Height: 78.7 ", Width: 31.5 ", Depth: 23.6 "
Specifications
Enclosure Composition
Stainless Steel
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Width
31.5"
Manufacturer
Rittal
Enclosure Height
78.7"
Enclosure Depth
23.6"
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3R
Enclosure NEMA Rating
NEMA Type 12
Enclosure NEMA Rating
NEMA Type 1
Component
Modular Enclosure
Features
Supply Includes: Enclosure frame Door(s) Door hinged on the right, may be swapped to the left Roof Base, solid Rear panel Mounting plate 4 eyebolts Lock: 3 mm double-bit 2 TS punched rails 18 x 38 mm Accessory kit for side panels for upgrading to IP 66 2 support strips fitted in the enclosure depth
Note: Due to the hardness of the material, we recommend using metal multi-tooth screws for the interior installation.
