Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

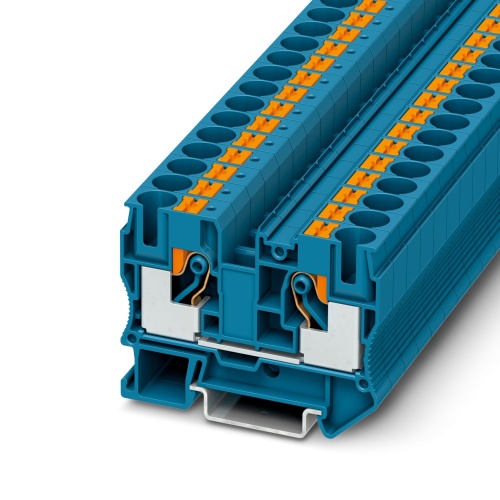

Phoenix Contact 3212123 Feed-through terminal block PT 10 BU
Normally In Stock
Code: 18148
PT 10 BU Phoenix Contact 3212123 Phoenix Contact PT 10 BU. Terminal Block 10.2mm Blue Single through Push-In Connection 1000V, 70A, 6-20AWG (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$4.66
Sale Price
$3.88
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3212123 A feed-through terminal block has a nominal voltage of 1000 V and a nominal current capacity of 57 A, allowing for up to two connections with push-in connection terminals, rated for cross-sections between 0.5 mm2 and 16 mm2, and is mounted using the NS 35/7.5 or NS 35/15 type, featuring a blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
10.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Amperage
57 Amp
Terminal Block Connection Method
Push-In Connection
Terminal Block Min Wire Size
20
Terminal Block Max Wire Size
6
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Features
Tested for railway applications
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
Downloads
Phoenix 3212123 CAD data International.dxfPhoenix 3212123 CAD data International.pdfPhoenix 3212123 CAD data International.stpPhoenix 3212123 CAD Drawing.zipPhoenix 3212123 Certification English.pdfPhoenix 3212123 Certification International.pdfPhoenix 3212123 Manufacturers declaration International-2.pdfPhoenix 3212123 Manufacturers declaration International-3.pdfPhoenix 3212123 Manufacturers declaration International-4.pdfPhoenix 3212123 Manufacturers declaration International-5.pdfPhoenix 3212123 Manufacturers declaration International.pdfPhoenix 3212123 Safety note English.pdfPhoenix 3212123 Spec Sheet.pdfPhoenix 3212123 Tender Text English.zipPhoenix 3212123 User instructions for the Ex Area International.pdf
