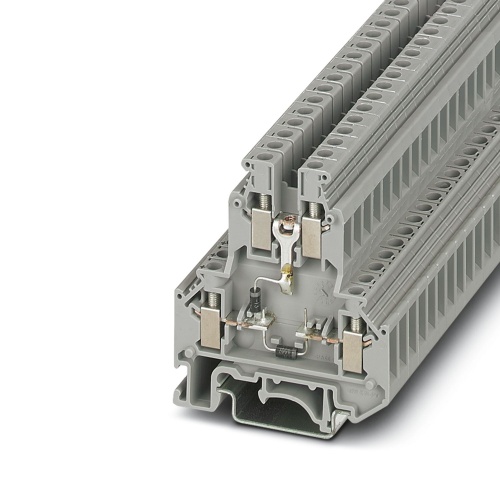

Phoenix Contact 2791142 Component terminal block UKK 5-2DIO/UL-O/UL-UR
Normally In Stock
Code: 18110
UKK 5-2DIO/UL-O/UL-UR Phoenix Contact 2791142 Double Level Terminal Block UKK 5-2DIO/UL-O/UL-UR
Condition: New
Usually ships within 7-14 days. Call for ship time.$26.04
Sale Price
$21.70
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

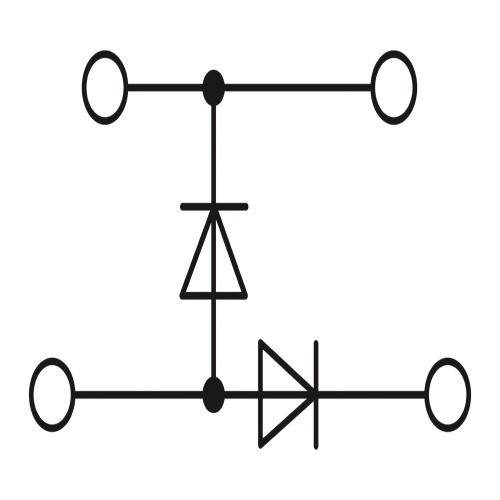

Phoenix Contact 2791142 The component terminal block features an integrated diode and has a nominal current rating of 0.5 A, allowing for four connections that can be made using a screw connection method, with rated cross sections ranging from 0.2 mm2 to 4 mm2 depending on the level, and is mounted using NS 35/7.5, NS 35/15, or NS 32 types, with a standard gray color designation.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Diode
With Diode
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Component Terminal Block
Features
Comprehensive product range for cartridge fuse-links, automotive flange fuses, and thermal device circuit breaker plugs
Easy potential distribution thanks to continuous function shafts
Convenient testing of fuses with test points on both sides
Quick identification of faulty fuses and fuse holders regardless of the current direction thanks to an LED status indicator
Easily accessible fuse-links are easy to replace
Same shape as the feed-through, knife, and disconnect terminal blocks
Downloads
Phoenix 2791142 CAD data International.dxfPhoenix 2791142 CAD data International.pdfPhoenix 2791142 CAD data International.stpPhoenix 2791142 Manufacturers declaration English.pdfPhoenix 2791142 Manufacturers declaration International.pdfPhoenix 2791142 Safety note English.pdfPhoenix 2791142 Spec Sheet.pdfPhoenix 2791142 Tender Text English.zip
