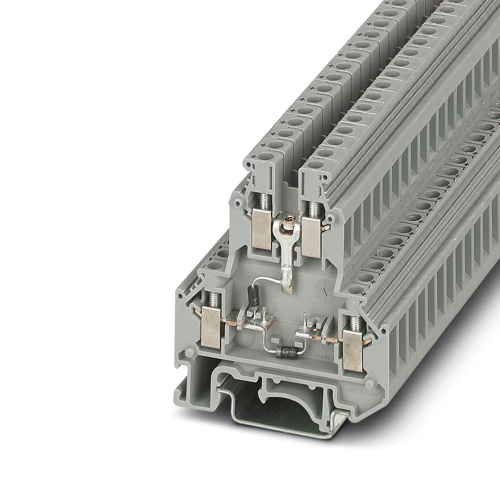

Phoenix Contact 2791113 Component terminal block UKK 5-2DIO/O-UL/UR-UL
Normally In Stock
Code: 18109
UKK 5-2DIO/O-UL/UR-UL Phoenix Contact 2791113 Double Level Terminal Block UKK 5-2DIO/O-UL/UR-UL
Condition: New
Usually Ships Same day or Next Day$27.77
Sale Price
$23.14
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

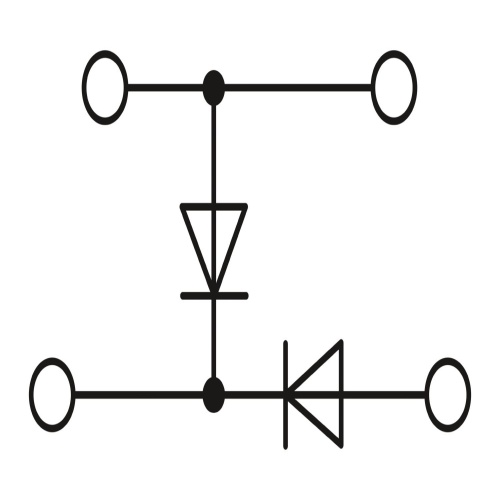

Phoenix Contact 2791113 The component terminal block is designed with a maximum current limit set by the diode installed, in this case the 1N4007 model. The diode has a reverse voltage rating of 1300V and a maximum continuous current capacity of 0.5A, while its integrated version has a nominal current rating of 0.5A. Connection is via screw attachment at both first and second levels, with rated cross sections ranging from 0.2mm² to 4mm² and mounting types including NS35/7.5, NS35/15, and NS32.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Diode
With Diode
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Component Terminal Block
Features
Double-level diode terminal blocks with various forms of wiring are available for a wide range of applications
Downloads
Phoenix 2791113 CAD data International.dxfPhoenix 2791113 CAD data International.pdfPhoenix 2791113 CAD data International.stpPhoenix 2791113 CAD Drawing.zipPhoenix 2791113 Manufacturers declaration English.pdfPhoenix 2791113 Manufacturers declaration International.pdfPhoenix 2791113 Safety note English.pdfPhoenix 2791113 Spec Sheet.pdfPhoenix 2791113 Tender Text English.zip
