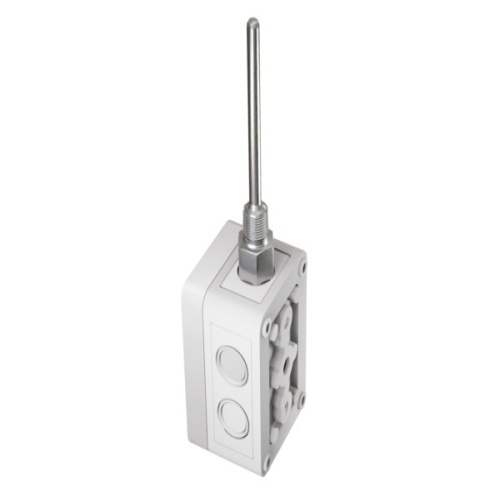

ACI CONFIGNIST119 A/CP-I-2.5"-4X-NIST 10K Ohm,Type II Immersion NEMA 4X Thermistor
Normally In Stock
Code: 179564
ACI CONFIGNIST119 10,000 Ohm Thermistor (Type II), Immersion, Welded Well, 2.5", NEMA 4X Enclosure, NIST Cert
Condition: New
Usually ships Same Day or Next Day$115.56
Sale Price
$96.30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The polycarbonate NEMA 4X, immersion configuration is designed for wet environments and adds a level of corrosion resistance. It has male 1/2 inch NPT threads and the sensing element is double encapsulated to avoid sensor failures caused by moisture infiltration. ACI also standardizes with etched Teflon lead wires and a two part well is included with this configuration. ACI immersion temperature sensors are designed for HVAC, Building Automation Systems, and light industrial applications. Specific applications include: chillers, hot water systems, tanks, and boilers. NOTE: Welded thermowells are not intended for moving water or high pressure service. Fluid velocity and wake frequency are primary factors in well failure. Machined thermowells should be used in these types of applications.
Specifications
Manufacturer
ACI
Component
Thermistor
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) Mounting
Immersion
(Instrument-Sensor) Type
10K Ohm-Type II
Features
The ACI Thermistor Immersion Series features a 6.35 mm(¼ in) diameter stainless steel probe with two, 35.6 mm (14in), 0.65 mm (22 AWG) Etched Teflon colored lead wiresdepending on the probe length ordered to differentiatethe different sensor types
The sensors in this series aremanufactured using ACI’s proven double encapsulationprocess to eliminate the effects of moisture and to increasethe response times using our high quality, thermallyconductive epoxy
The immersion sensors include awelded thermowell “-I” version but can be ordered withoutthe welded thermowell “-INW” version
The “INW” versionincludes a standard ½ in NPS Male process thread to beused with an optional machined thermowell or in an existingthermowell application
Optional NEMA/IP rated enclosuresand NIST certificates are available the back of the productdata sheet.
