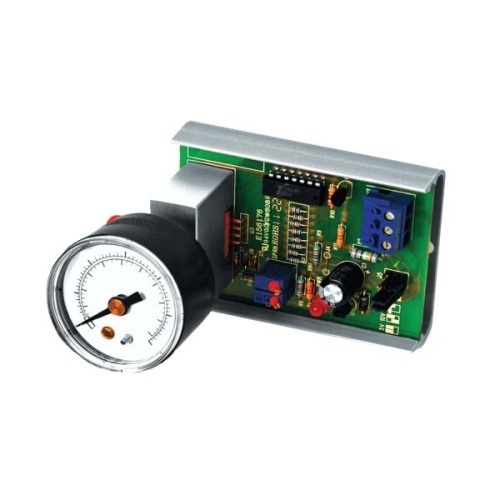

ACI 160651 PTP100 Analog Output Input Module
Normally In Stock
Code: 179541
ACI 160651 Pressure Input (0-100PSI), Analog Output (4-20mA), (1-5V, 2-10V, 3-15V Selectable)
Condition: New
Usually ships Same Day or Next Day$229.82
Sale Price
$191.52
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Three models of the PTP accept either a 3 to 15, 3 to 30, or 0 to minus 7.5 psig pneumatic pressure input and convert it to one of four proportional analog output ranges of 1-5, 2-10, 3-15 VDC or 4-20 mA which are jumper shunt selectable. The PTP is a positive current output device that is fully temperature compensated. A plugged gauge port is provided in the aluminum manifold for local mechanical indication via an optional 0 to 30 psi gauge. The PTP is covered by ACI's Two (2) Year Limited Warranty.
Specifications
Component
Input Module
Manufacturer
ACI
(Instrument-Sensor) Output Signal Type
Analog Output
Features
Two models of the PTP accept either a 3 to 15 or 3 to 30 psig pneumatic pressure input and convert it to one of four proportional analog output ranges of 1-5, 2-10, 3-15 VDC or 4-20 mA which are jumper shunt selectable
A plugged gauge port is provided in the aluminum manifold for local mechanical indication via an optional 0 to 30 psi gauge
Custom calibration is available upon request for an additional charge
This will speed up installation time for the end user.
