Code: 178481
ACI 145452 A/100KS-I-4"-BB 100K Ohm Immersion Thermistor
Normally In Stock
ACI 145452 100,000 Ohm Thermistor, Immersion, Welded Well, 4", NEMA 3R Enclosure
Condition: New
Usually ships Same Day or Next Day$65.88
Sale Price
$54.90
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

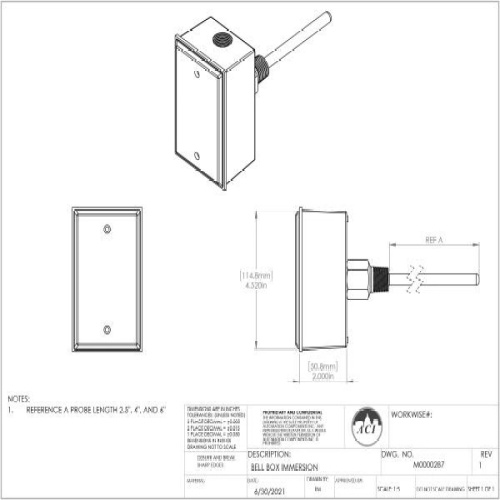

The metal bell box, with well configuration has a NEMA 3R rating and is designed for wet environments. It has male 1/2 inch NPT threads and the sensing element is double encapsulated to avoid sensor failures caused by moisture infiltration. ACI also standardizes with etched Teflon lead wires and 2 part wells. ACI immersion temperature sensors are designed for HVAC, Building Automation Systems, and light industrial applications. Specific applications include: chillers, hot water systems, tanks, and boilers. NOTE: Welded thermowells are not intended for moving water or high pressure service. Fluid velocity and wake frequency are primary factors in well failure. Machined thermowells should be used in these types of applications.
Specifications
Manufacturer
ACI
Component
Thermistor
(Instrument-Sensor) Type
100K Ohm
(Instrument-Sensor) Mounting
Immersion
Features
The ACI Thermistor Immersion Series features a 6.35 mm (¼ in) diameter stainless steel probe with two, 35.6 mm (14 in), 0.65 mm (22 AWG) Etched Teflon colored lead wires depending on the probe length ordered to differentiate the different sensor types
The sensors in this series are manufactured using ACI’s proven double encapsulation process to eliminate the effects of moisture and to increase the response times using our high quality, thermally conductive epoxy
The immersion sensors include a welded thermowell “-I” version but can be ordered without the welded thermowell “-INW” version
The “INW” version includes a standard ½ in NPS Male process thread to be used with an optional machined thermowell or in an existing thermowell application
Optional NEMA/IP rated enclosures and NIST certificates are available the back of the product data sheet.
