The ACI Thermistor Strap-On Series features a 1.5” square copper plate with the sensor encapsulated to the back side of the plate to improve the thermal conductivity between the pipe and the sensor when an Immersion style sensor can’t be inserted into the pipe

Each sensor has two, 14 inch 22 AWG Etched Teon colored lead wires to dierentiate the dierent sensor types

The sensors in this series are manufactured using ACI’s proven double encapsulation process to eliminate the eects of moisture upon the sensors as well as to improve the thermal response times using our high quality, thermally conductive epoxy

The Strap-On Series sensors can be used to monitor pipe sizes from 1 ¼” to 10” in diameter

For best accuracy and increased thermal conduction between the pipe and the sensor, ACI recommends to clean the pipe before applying thermal grease as well as to insulate the sensor from the eects of the ambient air

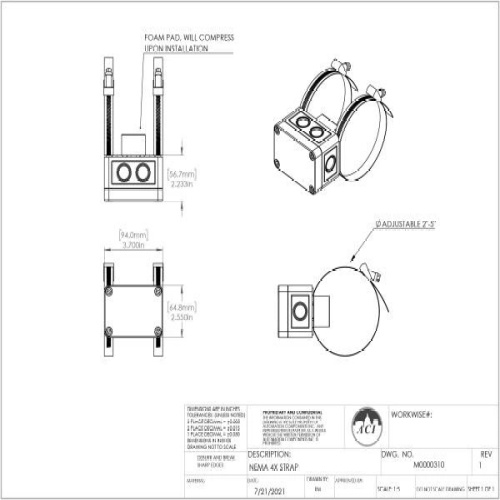

Optional weather proof enclosure and NIST certicates are available upon request
