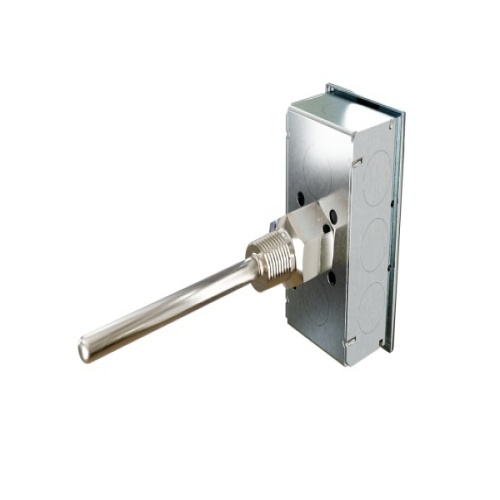

ACI 135730 A/10K-E1-I-2.5"-GD 10K Ohm Immersion Thermistor
Normally In Stock
Code: 176621
ACI 135730 10,000 Ohm (E1) Thermistor, Immersion, Welded Well, 2.5", Galvanized Enclosure
Condition: New
Usually ships Same Day or Next Day$44.28
Sale Price
$36.90
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
ACI 135730 10,000 Ohm (E1) Thermistor, Immersion, Welded Well, 2.5", Galvanized Enclosure
Specifications
Manufacturer
ACI
Component
Thermistor
(Instrument-Sensor) Type
10K Ohm
(Instrument-Sensor) Mounting
Immersion
Features
The ACI Thermistor Immersion Series features a 6.35 mm(¼ in) diameter stainless steel probe with two, 35.6 mm (14in), 0.65 mm (22 AWG) Etched Teflon colored lead wiresdepending on the probe length ordered to differentiatethe different sensor types
The sensors in this series aremanufactured using ACI’s proven double encapsulationprocess to eliminate the effects of moisture and to increasethe response times using our high quality, thermallyconductive epoxy

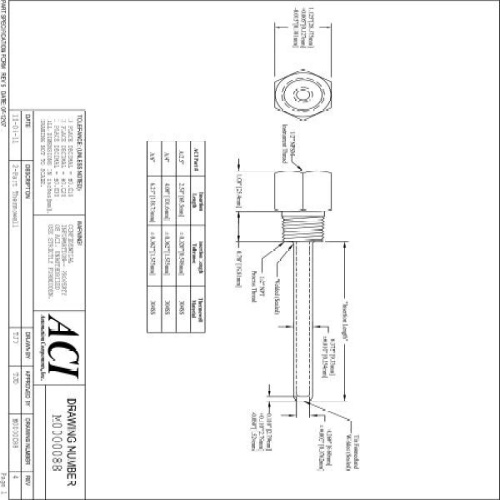

The immersion sensors include awelded thermowell “-I” version but can be ordered withoutthe welded thermowell “-INW” version
The “INW” versionincludes a standard ½ in NPS Male process thread to beused with an optional machined thermowell or in an existingthermowell application
Optional NEMA/IP rated enclosuresand NIST certificates are available the back of the productdata sheet.
Code: 176621
ACI 135730 A/10K-E1-I-2.5"-GD 10K Ohm Immersion Thermistor
$44.28
Sale Price
$36.90
