ACI 134268 A/20K-A-24'-4X 20K Ohm,Copper Averaging NEMA 4X Thermistor
Normally In Stock
Code: 176444

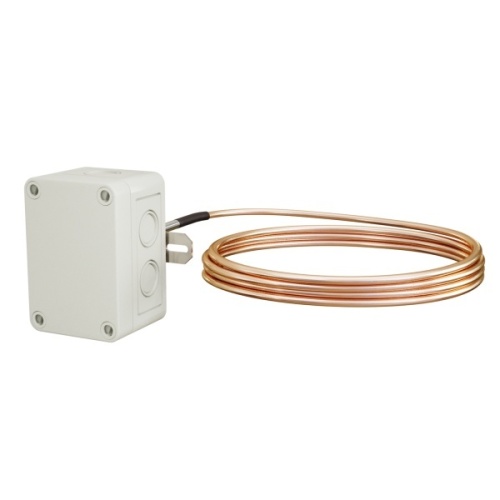

ACI 134268 20,000 Ohm Thermistor, Copper Averaging, 24', NEMA 4X Enclosure
Condition: New
Usually ships Same Day or Next Day$260.82
Sale Price
$217.35
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
The copper capillary houses sensing elements which are wired in a series/parallel configuration to provide an averaged output. This unit has a polycarbonate NEMA 4X (4X) enclosure which is designed for wet environments and adds a level of corrosion resistance. 20K Ohms @ 77 °F (25 °C) Thermistor
Specifications
Manufacturer
ACI
Component
Thermistor
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) Type
20K Ohm-Copper Averaging
Features
The ACI Thermistor Copper Averaging Series features a copper sensing element with AWGEtched Teon colored lead wires to dierentiate the dierent sensor types
Each sensor ismanufactured with 4 or 9 sensing points determined by the length of the sensing element
Theaveraging sensors provide a better average temperature of the air inside the duct whencompared to a single point duct sensor
Each of the elements is sealed to prevent moistureintrusion and includes a foam pad to seal the duct and dampen vibrations
The benets ofusing a copper sensing element is that it has improved thermal conductivity and highercorrosion resistance than similar aluminum style averaging sensors
Additionally, copper hasbeen proven to have an antibacterial eect to many of the airborne contaminants, mold andbacteria found in duct systems
Our standard enclosures include the galvanized “-GD” or plasticduct enclosure with hinged cover “-PB”
Each unit includes nylon wire ties and mounts withoptional copper capillary and universal plastic mounting clips, NEMA/IP Rated Weather Proof enclosures and NIST certicates as referenced on theback of the product data sheet.
