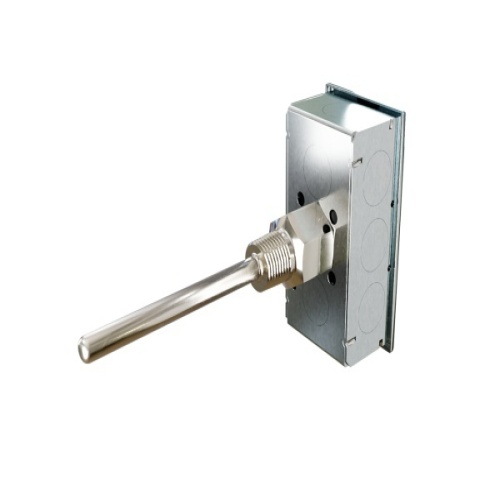

ACI 133429 A/0.1CP-I-6"-GD 10K Ohm Immersion Thermistor
Normally In Stock
Code: 176357
ACI 133429 High Accuracy 10,000 Ohm Thermistor (Type II), Immersion, Welded Well, 6", Galvanized Enclosure
Condition: New
Usually ships Same Day or Next Day$51.30
Sale Price
$42.75
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The ACI Thermistor Immersion Series features a ¼” diameter stainless steel probe with two, 14 inch 22 AWG Etched Teflon colored lead wires depending on the probe length ordered to differentiate the sensor types. The sensors in this series are manufactured using ACI’s proven double encapsulation process to eliminate the effects of moisture and to increase the response times using our high quality, thermally conductive epoxy. The immersion sensors include a welded thermowell “-I” version but can be ordered without the welded thermowell “-INW” version. The “INW” version includes a standard ½” NPS Male process thread to be used with an optional machined thermowell or in an existing thermowell application. Optional NEMA/IP rated enclosures and NIST certificates are available the back of the product data sheet. Applications: Chilled Water Systems, Hot Water Systems, Boilers, Pumps, Compressor, Chillers
Specifications
Manufacturer
ACI
Component
Thermistor
(Instrument-Sensor) Type
10K Ohm
(Instrument-Sensor) Mounting
Immersion
Features
The ACI High accuracy Thermistor Immersion Series features a ¼” diameter stainless steel probewith two, 14 inch 22 AWG Etched Teon colored lead wires to dierentiate the dierent sensortypes
The sensors in this series are manufactured using ACI’s proven double encapsulationprocess to eliminate the eects of moisture upon the sensors and to increase the thermalresponse times using our high quality, thermally conductive epoxy
The immersion sensorscome standard with a welded thermowell “-I” version but can be ordered without the weldedthermowell “-INW” version
The “INW” version includes a standard ½” NPS (National PipeStraight) Male process thread to be used with an optional machined thermowell or in anexisting thermowell application
This series can be ordered with optional NEMA/IP ratedenclosures or NIST Certicates as shown in the ordering information on the back of the product data sheet.
