Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

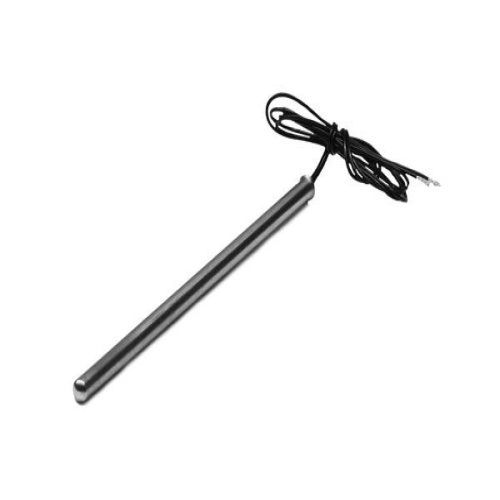

ACI 132803 A/3K-PO-8" 3K Ohm,Probe Thermistor
Normally In Stock
Code: 176274
ACI 132803 3,000 Ohm Thermistor, Probe Only, 8"
Condition: New
Usually ships Same Day or Next Day$15.12
Sale Price
$12.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The ACI Thermistor Probe Only Series features a ¼” diameter stainless steel probe with two, 14” or 24” 22 AWG Etched Teflon colored lead wires to differentiate the various NTC sensor types. The sensors in this series are manufactured using ACI’s proven double encapsulation process to eliminate the effects of moisture upon the sensors and to increase the thermal response time using our high quality, thermally conductive epoxy. The probe is designed to be used in duct and immersion applications when used with the proper length thermowell. Applications: Roof Top Units, Air Handlers, Supply/Discharge Air/Return/Mixed/Exhaust Air Duct Temperature Sensing, Immersion Temperature Sensors, Replacement Temperature Sensors
Specifications
Manufacturer
ACI
Component
Thermistor
(Instrument-Sensor) Type
3K Ohm-Probe
Features
The ACI Thermistor Probe Only Series features a ¼” diameter stainless steel probe with two, 14” or 24 inch 22 AWG Etched Teflon colored lead wires to differentiate the different NTC sensor types
The sensors in this series are manufactured using ACI’s proven double encapsulation process to eliminate the effects of moisture upon the sensors and to increase the thermal response time using our high quality, thermally conductive epoxy
The probe is designed to be used in duct and immersion applications when used with the proper length thermowell
Optional lead lengths, cable types and NIST Certificates are avalible as referenced in the ordering grid on the Product Data Sheet
Please contact ACI for more information regarding this sensor or to discuss your application in further detail
Other options that may be avalible upon request.
