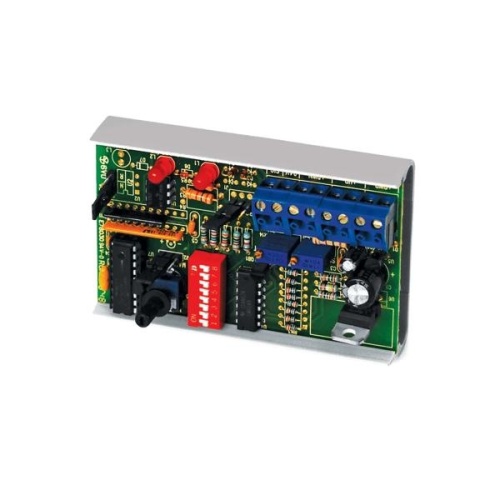

ACI 129569 PTA-PPM Pulse Width Modulation (PWM) Analog Output Input Module
Normally In Stock
Code: 175862
ACI 129569 Pulse Width Modulate Input (60ppm), Analog Output (Selectable), (100, 1500, or 3000 Pulses/Min Selectable), Water Flow Meter Pulse
Condition: New
Usually ships Same Day or Next Day$165.53
Sale Price
$137.94
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The PTA converts a single pulse-width modulated input to an analog current or voltage output. A timed contact or solid state closure from the controlling microprocessor controller is converted to a linear analog output signal with 256 steps of resolution. The last output signal is held until the PTA receives the end of the next pulsed input signal. The PTA’s output will not wrap around if an excessively long input pulse is received. Ten preset analog output signal spans are DIP switch selectable. In addition, the span and offset potentiometer offer maximum user adjustment of the output signal. The input signal is optically isolated and can accept either positive or negative polarity. The PTA is covered by ACI's Two (2) Year Limited Warranty.
Specifications
Component
Input Module
Manufacturer
ACI
(Instrument-Sensor) Output Signal Type
Analog Output
(Instrument-Sensor) Type
Pulse Width Modulation (PWM)
