Code: 175773

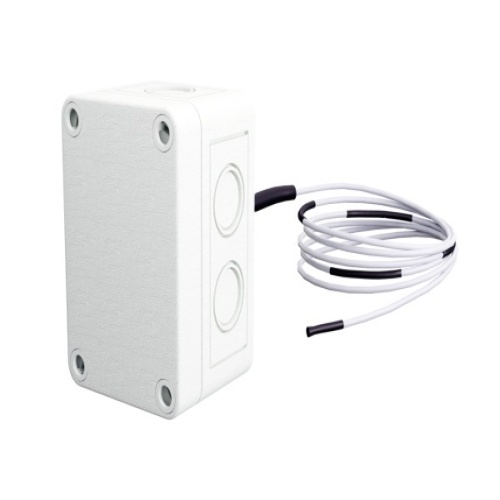

ACI 128286 A/20K-FA-24'-4X 20K Ohm,Flexible Cable Averaging NEMA 4X Thermistor
Normally In Stock
ACI 128286 20,000 Ohm Thermistor, Flexible Cable Averaging, 24', NEMA 4X Enclosure
Condition: New
Usually ships Same Day or Next Day$277.56
Sale Price
$231.30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
The polycarbonate NEMA 4X (4X) configuration is designed for wet environments and adds a level of corrosion resistance. The cable assembly houses sensing elements which are wired in a series/parallel configuration to provide an averaged output. 10K Ohms @ 77 Deg F (25 Deg C) Type II Thermistor. ACI averaging temperature sensors are designed for HVAC or Building Automation Systems. Specific applications include: zone control, air handling units, and large sized ducts.
Specifications
Manufacturer
ACI
Component
Thermistor
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) Type
20K Ohm-Flexible Cable Averaging
Features
The ACI Thermistor Flexible Averaging Series features an 18 AWG Plenum Rated cable sensingelement with two, 12 inch 22 AWG Etched Teon colored lead wires to dierentiate thedierent sensor types
The sensors in this series are multi-point
Averaging sensors provide abetter overall average temperature of the actual air inside larger ducts when compared to thatof a single point sensor
All exible averaging sensors are limited to being used in applicationswhere operating temperatures are limited and high humidity, chemical resistance, and UV lightsources aren’t required
Each of the sensing elements is protected using a dual wall adhesivelined heat shrink tubing to provide a basic level of moisture protection
The sensor lengthshould be determined by the size of your duct
Standard enclosure options include agalvanized junction box “-GD” or plastic duct enclosure with hinged cover “-PB”
Each unit includes nylon wire ties and mounts for mounting.Optional copper capillary or universal plastic mounting clips, NEMA/IP Weather proof enclosures and NIST Certicates are available as referenced inthe ordering grid on the back of the product data sheet.
