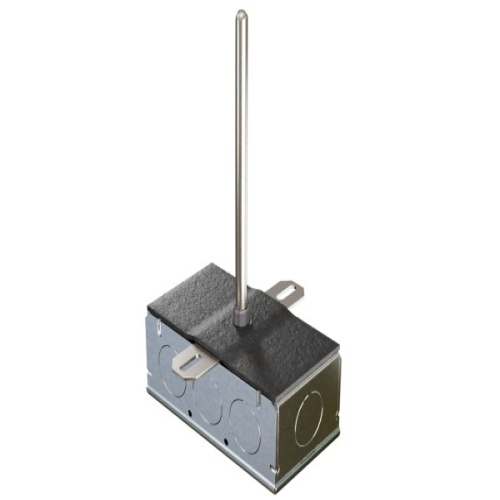

ACI 123428 A/CSI-RA-18"-GD 10K Ohm,Rigid Probe Average Thermistor
Normally In Stock
Code: 175464
ACI 123428 10,000 Ohm (CSI) Thermistor, Rigid Probe Averaging, 18", Galvanized Enclosure
Condition: New
Usually ships Same Day or Next Day$68.58
Sale Price
$57.15
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
10K Ohms @ 77 Deg F (25 Deg C) The galvanized metal duct mount configuration has a mounting flange for quick installation and a foam pad to dampen vibrations.
Specifications
Manufacturer
ACI
Component
Thermistor
(Instrument-Sensor) Type
10K Ohm-Rigid Probe Averaging
Features
The ACI Thermistor Rigid Averaging Series features a ¼” Diameter stainless steel sensingelement with two, 12 inch, 22 AWG Etched Teon colored lead wires to dierentiate thedierent sensor types
The sensors in this series are manufactured with 4 sensing points inlengths from 12” to 48”
The rigid averaging sensors will provide a better average temperatureof the air inside the duct when compared to a single point sensing element
Each of theelements is hermetically sealed to prevent any moisture intrusion and includes an integratedfoam pad to properly seal the duct and dampen vibrations when installed
The benets ofusing the rigid averaging sensor is that it mounts like a standard single point duct sensor butincludes three additional sensing points for better control
The sensor length should bedetermined by the size of your duct
Our standard enclosures include the galvanized junctionbox “-GD” or plastic duct enclosure “-PB” with the hinged cover depending on your preference.This series can be ordered with optional NEMA/IP rated weather proof enclosures as referenced in the ordering grid.
