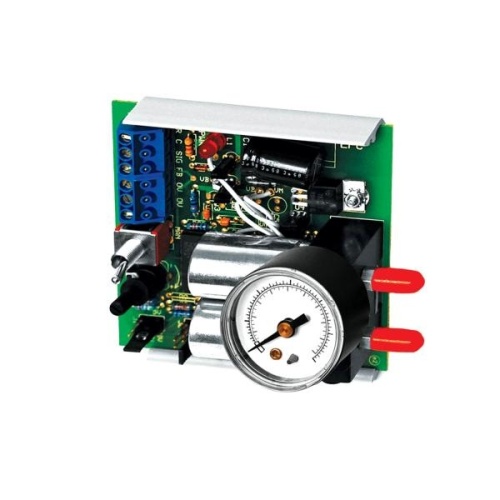

ACI 102478 EPC2G Analog Input
Normally In Stock
Code: 174068
ACI 102478 Analog Input (0-5VDC), Pressure Output (0-10PSI), Dual Valve, Maintains Branch Pressure , Gauge, (0-10V, 0-15V 0-20mA), (0-15PSI, 0-20PSI)
Condition: New
Usually ships Same Day or Next Day$264.71
Sale Price
$220.59
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.

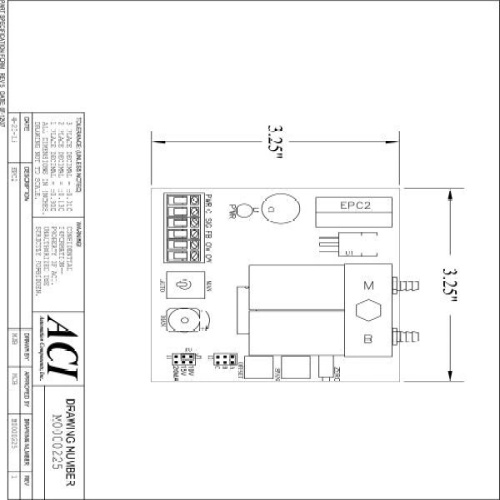

Description
The EPC* is an electric to pneumatic transducer which converts an analog input signal to a proportional pneumatic output, modulating its control valve(s) to regulate the branch line pressure to the set point determined by the input signal. The EPC* offers four selectable input ranges of 0 to 5, 0 to 10, 0 to 15 VDC and 0 to 20 mA. Output pressure ranges are jumper shunt selectable for 0 to 10, 0 to 15 and 0 to 20 psig, and adjustable in all ranges. A 0-5 VDC feedback signal indicating the resultant branch line pressure, is also provided. This signal varies linearly with branch pressure range selected. EPC's are designed with electrical terminals on one end and pneumatic connections on the other, allowing for maximum convenience in wiring and tubing installation when panel mounted. The EPC is a constant bleed interface with branch exhaust response time determined by the bleed orifice size and pressure differentials. If power fails to the EPC, it will continue to bleed through the bleed orifice until branch pressure is zero psig.
Specifications
Manufacturer
ACI
Component
Analog Input
Features
The EPC Series are electric to pneumatic transducers which convert an analog input signal to a proportional pneumatic output, modulating its control valve(s) to regulate the branch line pressure to the set point determined by the input signal
The EPC series offers four selectable input ranges
Output pressure ranges are jumper shunt selectable and adjustable in all ranges
A feedback signal indicating the resultant branch line pressure is also provided
EPC Series is designed with electrical terminals on one end and pneumatic connections on the other, allowing for maximum convenience in wiring and tubing installation when panel mounted
The EPC is a constant bleed interface with branch exhaust response time determined by the bleed orifice size and pressure differentials
If power fails to the EPC, it will continue to bleed through the bleed orifice until branch pressure is zero psig
The EPC2 incorporates two valves (one controls exhaust), does not bleed air at set point, and has a 2300 scim supply and exhaust
Its branch exhaust flow and response time are not limited by an internal restrictor and are similar to its load rate
EPC2LG operates as the EPC2, but has an external 5 micron filter, and includes a 0-30 psi gauge
If power fails to the EPC2 or EPC2LG, branch line pressure remains constant if the branch line does not leak air
The EPC2FS shares the same specifications as the EPC2 except its 3-way branch valve will exhaust branch line air upon power failure
Custom calibration is available upon request for an additional charge
This will speed up installation time for the end user.
