Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 173834

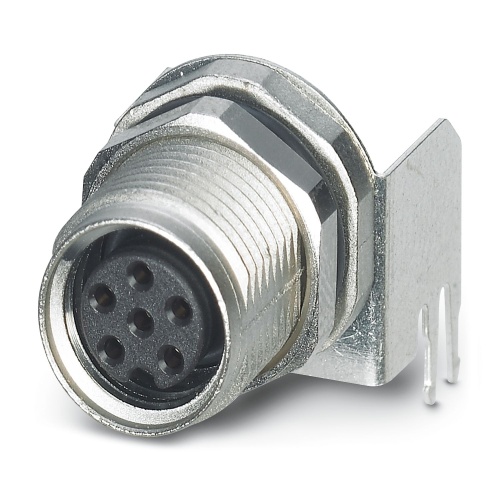

Phoenix Contact 1424243 Device connector rear mounting SACC-DSI-M8FS-6CON-M10-L90 SH
Normally In Stock
Phoenix Contact 1424243 - 6 Positions - Cu Alloy - IP67 - Solder Connection
Condition: New
Usually ships Same Day or Next Day $42.38
Sale Price
$35.32
MUST BUY IN PACKS OF 20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

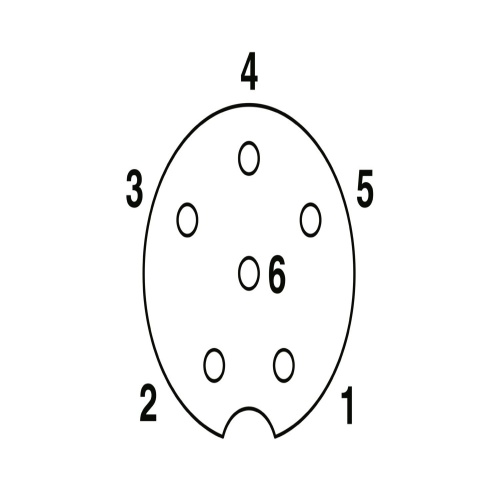

Phoenix Contact 1424243 The device connector features a rear-mounted design with six positions, employing an M8 socket and angled configuration, using coding system A. Additionally, it has an M10 mounting option with solder pins for secure attachment.
Specifications
Connector Material
Cu Alloy
Connector protection
IP67
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
6
Sub Component
Device Connector-Rear Mounting
Connector Material
Zinc Die-Cast (Nickel-Plated)
Features
Easy PCB assembly: one-piece connectors for wave soldering
Standard pin assignments and codings for signal transmission with a uniform design-in design
For high transmission reliability: optional shield connection to the housing and latching on the PCB
Code: 173834
Phoenix Contact 1424243 Device connector rear mounting SACC-DSI-M8FS-6CON-M10-L90 SH
$42.38
Sale Price
$35.32
MUST BUY IN PACKS OF 20
