nVent Hoffman A604810LPG Steel Enclosure
Normally In Stock
Code: 17355

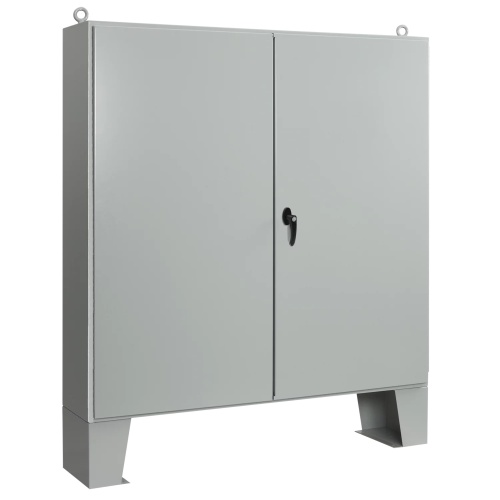

nVent Hoffman A604810LPG Gray interior 60" x 48" x 10" Type 12 Indoor Floor Mount Mild Steel Two Door Enclosure with concealed hinges, 3-point latch with keylocking handle. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$3442.63
Sale Price
$2868.86
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A604810LPG Steel Enclosure Freestanding Steel Two Door Enclosure has gasketed, overlapping doors to keep the elements at bay and floor stands that provide additional height and access for cleaning under the enclosure. With no centerpost, it is simple to install and remove panels. Concealed easy to remove latch doors with 3-point latch system with keylocking handle. Data pocket included in door with stay in place gasket for tight seal and provisions for bonding doors. Studs for adding backplates for mounting equipment.
Specifications
Enclosure Hinge Type
Standard Hinge
Enclosure Interior Color
White
Enclosure Depth
10"
Enclosure Interior Color
Gray
Enclosure Lock Type
Keylocking
Enclosure Composition
Painted Steel
Enclosure Latch Type
3 Point
Enclosure Height
60"
Enclosure Width
48"
Enclosure Mount Type
Floor Mount
Enclosure Environment Rating
Indoor
Enclosure Door Type
Solid
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Manufacturer
Hoffman
Features
Data pocket is high-impact thermoplastic
Gasketed overlapping doors with no centerpost
Concealed, easy-to-remove hinges
12-in. floor stands bolted-on to enclosure
3-point latch mechanism operated by oil-tight key-lock handle
Seams continuously welded and ground smooth, no holes or knockouts
Heavy-duty lifting eyes
Bonding provision on door
Collar studs for mounting optional panel
Oil-resistant gasket
Panel supports
Provision for mounting fluorescent light
Downloads
Hoffman A604810LPG 2D DXF CAD.zipHoffman A604810LPG 3D STEP CAD.zipHoffman A604810LPG CAD Drawing.zipHoffman A604810LPG CSA Certification.pdfHoffman A604810LPG Declaration of Compliance.pdfHoffman A604810LPG Dimension Drawing.gifHoffman A604810LPG EU Certification.pdfHoffman A604810LPG Large Enclosure Handling Manual.pdfHoffman A604810LPG Repainting Instructions.pdfHoffman A604810LPG Spec Sheet.pdfHoffman A604810LPG UL Certification.pdf
