Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 173527

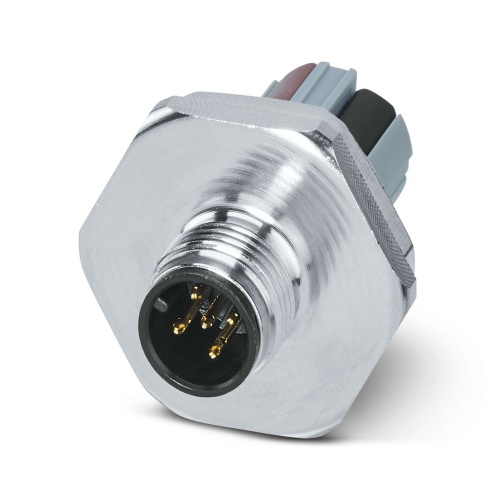

Phoenix Contact 1139804 Panel feed-through SACC-E-M12MS-5PL-M20
Normally In Stock
Phoenix Contact 1139804 - 5 Positions - CuSn - 26 AWG - IP67 - Push-Lock Connection
Condition: New
Usually ships Same Day or Next Day$32.11
Sale Price
$26.76
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

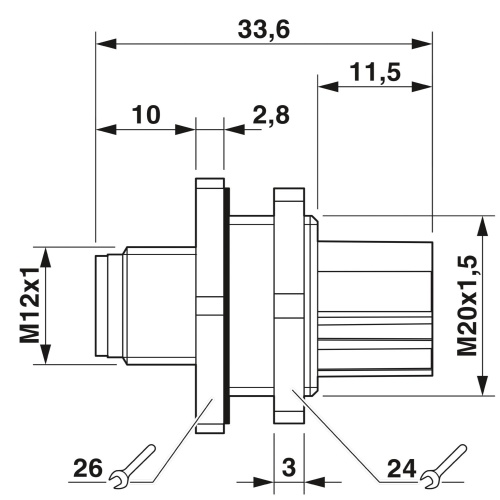

Phoenix Contact 1139804 The panel feed-through has a universal design with five positions and is made of unshielded material. It features an M12 straight plug with coding A and can be mounted on the front. The M20 x 1.5 thread is paired with a push-lock spring connection, while the knurling is done in brass and nickel-plated material, with a flat nut included for added convenience.
Specifications
Component
Panel
Connector Material
Cusn
Connector protection
IP67
Manufacturer
Phoenix Contact
Number of Positions
5
Sub Component
Panel Feed-Through - Device Side
Features
Easy and tool-free connection with Push-Lock connection
Easy assignment of individual conductors with color coding and numerical marking of contact holder levers
Conveniently connect stranded conductors, thanks to lever
Reliable and quick connection of electric cables
