Phoenix Contact 1437546 Device connector rear mounting SACCBP-FS-5CON-PG9/2,0-920SCO
Normally In Stock
Code: 172878

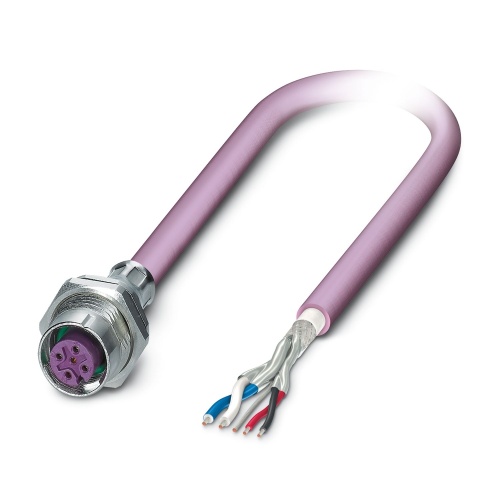

Phoenix Contact 1437546 - Device connector, rear mounting - 4 Positions - CuZn - IP67 - CAN Bus, DeviceNet Connection - M12
Condition: New
Usually ships Same Day or Next Day$66.77
Sale Price
$55.64
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

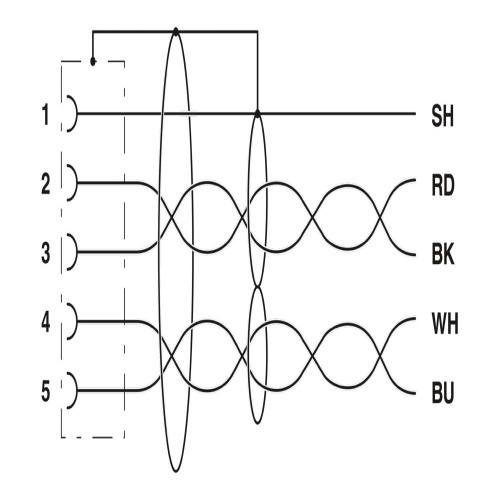

Phoenix Contact 1437546 The bus system is equipped with a flush-type socket that supports DeviceNet and CANopen protocols, featuring five positions in M12 format, shielded and A-coded for enhanced protection. It comes with a rear/screw mounting arrangement utilizing a Pg9 thread and is supplied with a 2.0m bus cable containing two wires of 0.25mm² and two wires of 0.34mm², along with one wire of 0.34mm².
Specifications
Connector Material
PA 6.6
Connector Material
Cuzn
Connector protection
IP67
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
4
Sub Component
Device Connector-Rear Mounting
Features
Preassembled with cables in various standard lengths for immediate use
Customer-specific assemblies and cable lengths can be supplied
Sealed on the cable side for optimum tightness of seal
Cable designs for all common networks and fieldbuses
For high transmission safety: shield connection to the housing with optional EMC nut
