Phoenix Contact 1437575 Device connector rear mounting SACCBP-MS-5CON-PG9/1,0-920SCO
Normally In Stock
Code: 172850
Phoenix Contact 1437575 - Device connector, rear mounting - 4 Positions - IP67 - CAN Bus, DeviceNet Connection - SPEEDCON Locking - M12
Condition: New
Usually ships Same Day or Next Day$78.82
Sale Price
$65.68
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

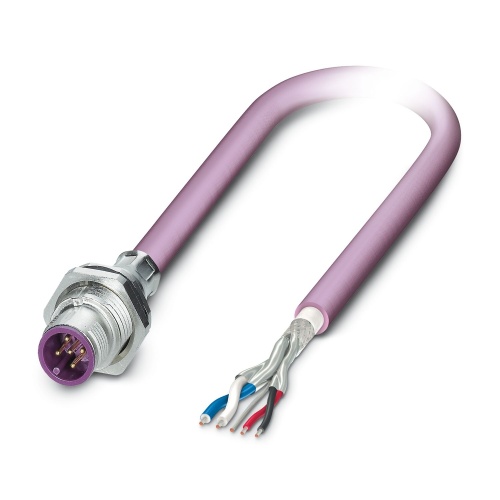

Phoenix Contact 1437575 The device connector has a rear mounting configuration and is designed for use with CANopen and DeviceNet protocols. It features a 5-position, halogen-free, red lilac RAL 4001 finish, is shielded, and has a straight pin configuration of M12-SPEEDCON. The coding on the free end of the cable is A, indicating that it is connected via rear mounting (Pg9) to provide a secure cable connection, with an overall length of 1 meter for CANopen and DeviceNet protocols, both featuring a PUR material with a violet finish.
Specifications
Connector protection
IP67
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
4
Sub Component
Device Connector-Rear Mounting
Features
Preassembled with cables in various standard lengths for immediate use
Customer-specific assemblies and cable lengths can be supplied
Sealed on the cable side for optimum tightness of seal
Cable designs for all common networks and fieldbuses

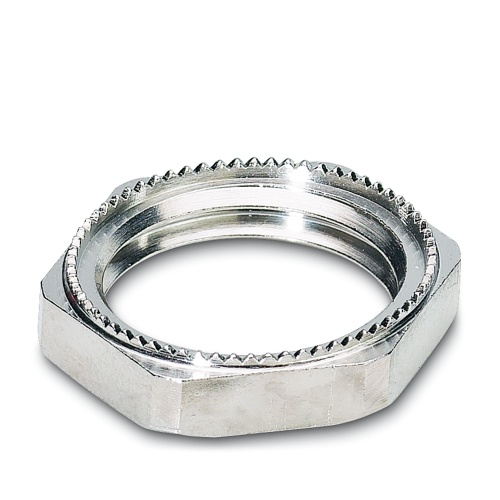

For high transmission safety: shield connection to the housing with optional EMC nut
