Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 172760

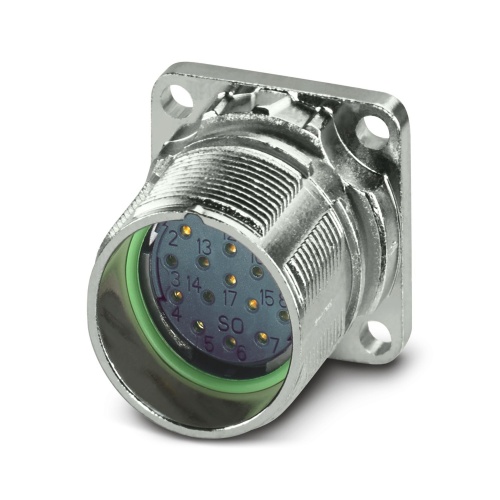

Phoenix Contact 1132745 Device connector front mounting M23-17S1N8AWB00S
Normally In Stock
Phoenix Contact 1132745 - 17 Positions - IP68 - Crimp Connection
Condition: New
Usually ships Same Day or Next Day$12.82
Sale Price
$10.68
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

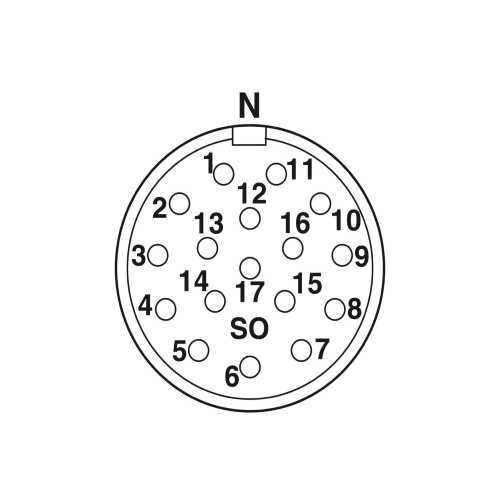

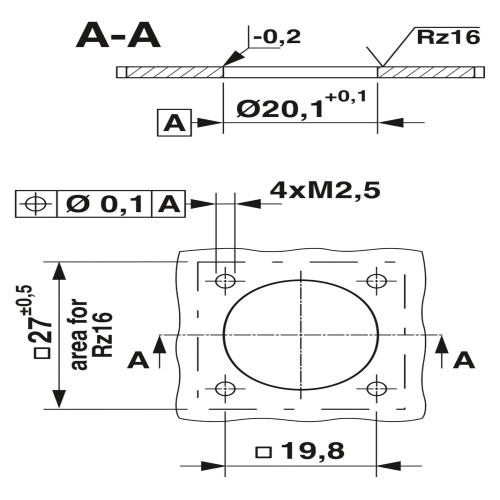

Phoenix Contact 1132745 The M23 PRO series connector features a straight design with shielding for added protection against interference, ideal for the standard and ONECLICK fast locking systems. It has 17 pins, rotates clockwise as per standard orientation, and uses a socket contact connection type that can be secured via crimping. The flange dimensions are 26mm x 26mm, while the connector has four openings of Ø2.7mm diameter. The item meets lead-free requirements under RoHS II without exception, with a maximum allowable Pb content of less than 0.1%.
Specifications
Connector protection
IP68
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
17
Sub Component
Device Connector-Front Mounting
Features
Solutions with cross-manufacturer compatibility for standard and fast locking systems
Modern, consistent design for highly convenient operation
Crimping connection: vibration- and temperature-resistant assembly
All housing can be fitted with pin or socket contacts
Safe use in the field, thanks to high degree of protection

Code: 172760
Phoenix Contact 1132745 Device connector front mounting M23-17S1N8AWB00S
$12.82
Sale Price
$10.68
