Phoenix Contact 1132741 Device connector front mounting M23-09P1N8AWB00S
Normally In Stock
Code: 172755
Phoenix Contact 1132741 - 9 Positions - 14 Amp - IP68 - Crimp Connection - M23
Condition: New
Usually ships Same Day or Next Day$12.82
Sale Price
$10.68
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

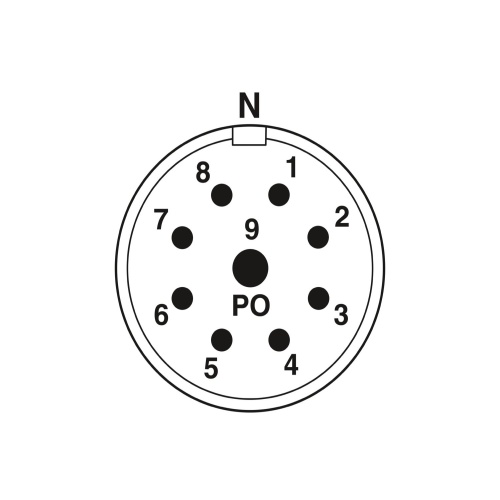

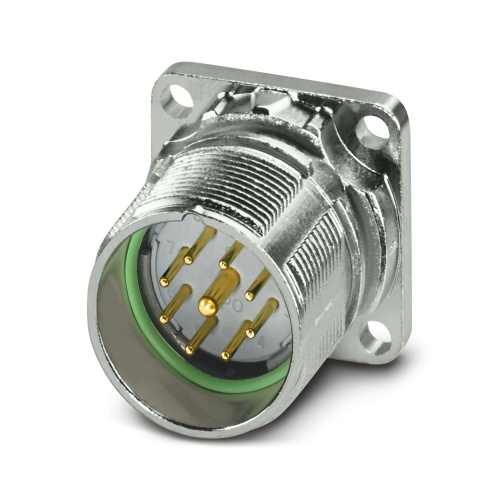

Phoenix Contact 1132741 The M23 PRO device connector features a straight design and comes shielded for added protection, suitable for both standard and ONECLICK fast locking systems. It has eight pin positions plus one, with a standard rotation direction and uses a pin connection type, requiring crimping to secure the connection via four holes with 2.7mm diameter. The flange dimensions are 26mm x 26mm in size and is coded as N, meeting lead-free standards according to RoHS II without any exemptions, ensuring less than 0.1% of lead content.
Specifications
Connector Amperage
14 Amp
Connector protection
IP68
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
9
Sub Component
Device Connector-Front Mounting
Features
Solutions with cross-manufacturer compatibility for standard and fast locking systems
Modern, consistent design for highly convenient operation
Crimping connection: vibration- and temperature-resistant assembly
All housing can be fitted with pin or socket contacts
Safe use in the field, thanks to high degree of protection
