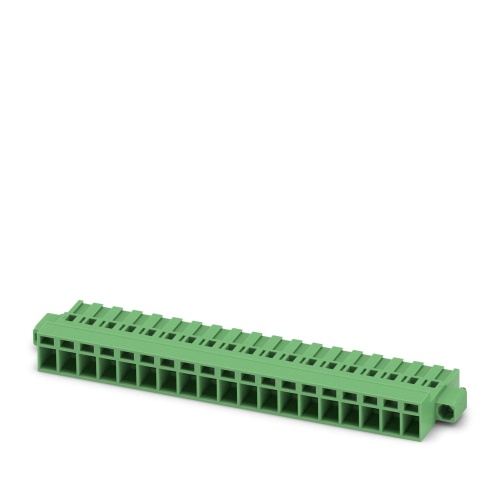

Phoenix Contact 1809909 PCB connector MSTBC 2,5/19-STZF-5,08
Normally In Stock
Code: 172571
Phoenix Contact 1809909 MSTBC 2,5/19-STZF-5,08 ,PA,I Printed-circuit board connector
Condition: New
Usually ships Same Day or Next Day $9.34
Sale Price
$7.78
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1809909 The given connector has a nominal cross-sectional area of 2.5mm² and is colored green, with a maximum current rating of 12A and a rated voltage of up to 320V (III/2). It features a socket contact connection type, 19 numbered potentials, and a pitch of 5.08mm, requiring a crimp connection method, and can be mounted using a screw flange or without a locking clip, utilizing either a plug-in system with a screw lock mechanism for secure attachment, packaged in cardboard.
Specifications
Connector Amperage
12 Amp
Connector Material
I
Connector Material
PA
Manufacturer
Phoenix Contact
Component
PCB
Sub Component
PCB Plug
Number of Positions
19
Number of Connections
19
Features
Inexpensive connection of large quantities of preassembled conductors
Pull-out aid facilitates handling and allows the tensile force to be reduced at the contact point
Screwable flange for superior mechanical stability
