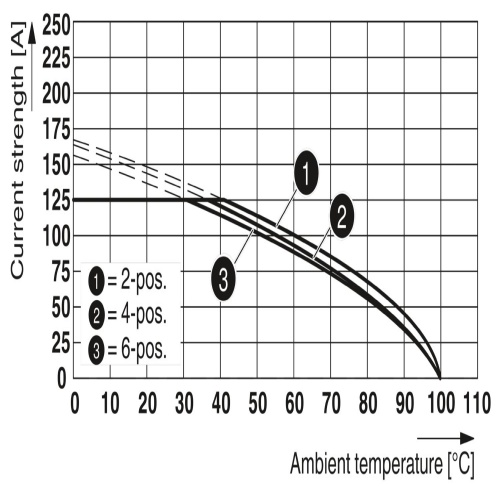

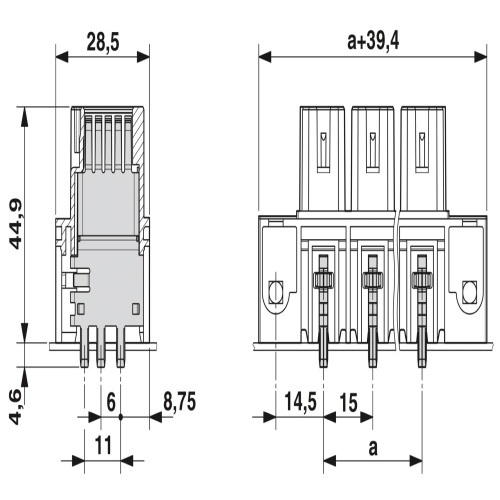

Phoenix Contact 1793574 The PCB headers have a nominal cross-sectional area of 35 mm2 and are colored green, with a nominal current capacity of 125 A and a rated voltage of 1000 V. These headers feature silver contact surfaces, socket connections, four potentials, one row, four positions, and four connections, falling within the IPCV 35 HC product range, which uses a linear pinning layout and has a pitch of 15 mm. The headers are designed for wave soldering mounting, have three solder pins per potential, and utilize the COMBICON PC 35 plug-in system, with screw locking mechanisms securing them in place through threaded flanges, packaged in cardboard.
