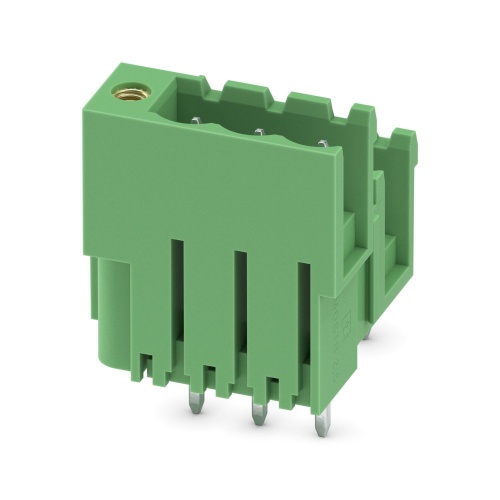

Phoenix Contact 1874659 PCB header MDSTBV 2,5/ 3-GFL
Normally In Stock
Code: 172103
Phoenix Contact 1874659 MDSTBV 2,5/ 3-GFL ,Copper Alloy,PBT,IIIa Feed-through header
Condition: New
Usually ships Same Day or Next Day$63.31
Sale Price
$52.76
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1874659 The specified PCB header has a nominal cross-sectional area of 2.5 mm², with green color and rated voltage of up to 320 V, supported by a Sn contact surface, using pin-type connections with six potentials, arranged in two rows and three positions, requiring wave soldering for mounting and linear pinning. The connector features standard alignment, screw-locking mechanism, threaded flange for mounting, packed in cardboard packaging, and has specific compatibility requirements when paired with certain other connectors, such as MVSTB or FKCV components.
Specifications
Connector Amperage
10 Amp
Connector Material
PBT
Connector Material
Iiia
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Number of Positions
3
Number of Connections
6
Component
PCB
Sub Component
PCB Header
Features
Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Easy PCB replacement thanks to plug-in modules
Well-known mounting principle allows worldwide use
Conductor connection on several levels enables higher contact density
Screwable flange for superior mechanical stability
