Code: 154705
Phoenix Contact 1893779 PCB connector ZEC 1,0/11-ST-3,5 C1 R1,11
Normally In Stock
Phoenix Contact 1893779 ZEC 1,0/11-ST-3,5 C1 R1,11 ,I,PA Printed-circuit board connector *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day *NON-CANCELLABLE, NON-RETURNABLE*
$15.18
Sale Price
$12.65
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

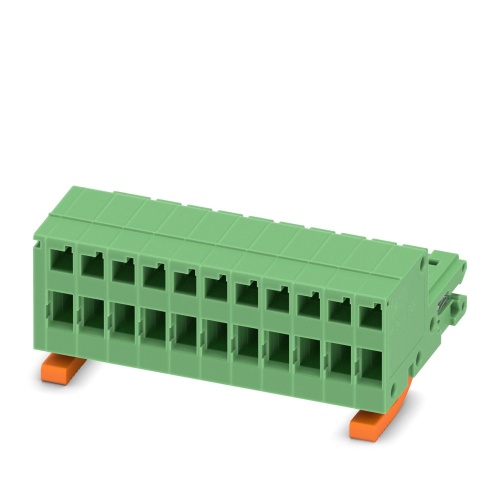

Phoenix Contact 1893779 The direct plug PCB features a nominal cross-sectional area of 1mm², is green in color, and has an 8A nominal current rating with a rated voltage of 200V. It boasts 11 contact points arranged in one row with a pitch of 3.5mm using a spring-cage connection method and can be mounted directly with a plug-in system that utilizes snap-in locking and features a latching flange, packaged in cardboard.
Specifications
Connector Amperage
8 Amp
Connector Voltage
2.5 Kv
Connector Material
I
Connector Material
PA
Manufacturer
Phoenix Contact
Number of Positions
11
Component
PCB
Sub Component
PCB Direct Plug
Connector Voltage
160 Volt
Connector Voltage
320 Volt
Connector Voltage
200 Volt
Features
Defined contact force ensures that contact remains stable over the long term
Inexpensive direct plug-in connection with just one component
Clamping space opened by means of fixed screwdriver enables convenient conductor connection
Plug-in direction parallel to the PCB
