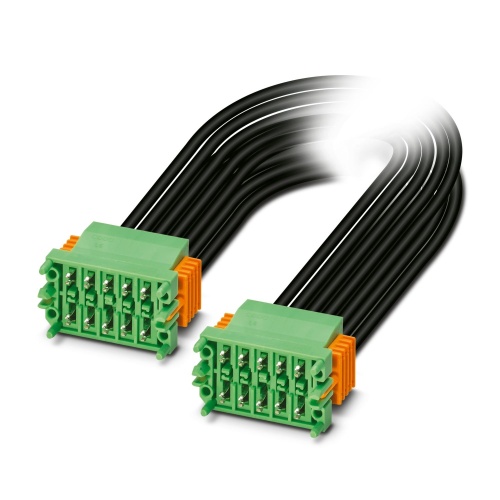

Phoenix Contact 1084527 Assembled PCB connectors CAC-CDDC1016515/D
Normally In Stock
Code: 154309
Phoenix Contact 1084527 CAC-CDDC1016515/D Green ,PA,Tin-plated Cu litz wires,Tin-plated Cu litz wires,Tin-plated Cu litz wires,Tin-plated Cu litz wires,Tin-plated Cu litz wires Assembled PCB connectors
Condition: New
Usually ships Same Day or Next Day $141.96
Sale Price
$118.30
MUST BUY IN PACKS OF 25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

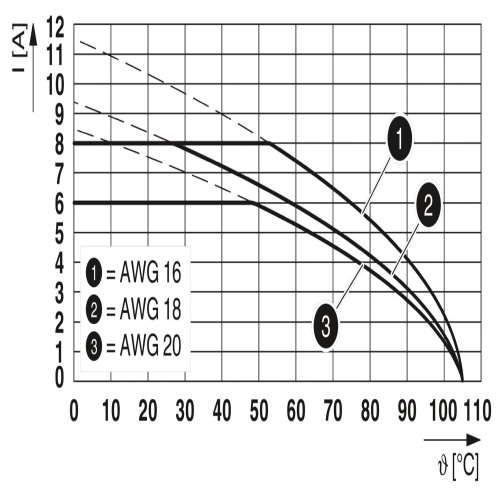

Phoenix Contact 1084527 A connector assembly consisting of two PCB connectors connected to a single connecting cable is described. The cable has a maximum rated current of 8 A and a length range of free input between 0.1 and 3.0 meters. It features two heads with two-position switches and a pitch of 3.5 mm, secured via crimp connections. The cable itself consists of individual litz wire, PVC insulation, and is available in 20 AWG black (head 1) and 18 AWG black (head 2).
Specifications
Connector Color
Green
Connector Amperage
8 Amp
Connector Material
PA
Connector Material
Tin-Plated Cu Litz Wires
Manufacturer
Phoenix Contact
Number of Positions
2
Component
PCB
Sub Component
Assembled PCB Connector
Connector Voltage
300 Volt
Connector Voltage
1500 Volt
Features
Simple and safe: 100% electrically tested and assembled ready for use
SKEDD direct plug-in technology enables flexible positioning on the PCB
Reduced component and process costs: simple insertion by hand and vibration-resistant connection
Contacts arranged in a double row enable high packing density in a compact area
Approval in accordance with UL standard “Wiring Harness Traceability Program”
