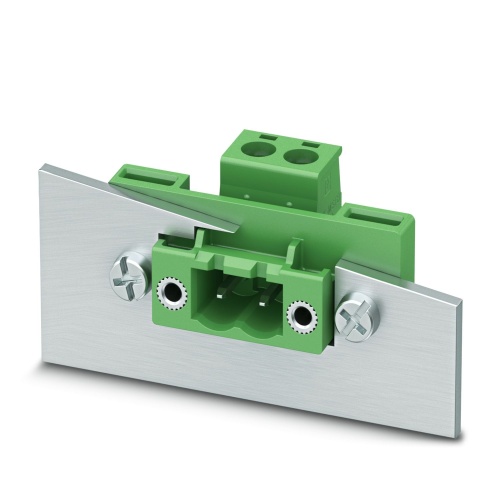

Phoenix Contact 1096152 Feed-through plug DFK-MSTB 2,5/ 2-STF-5,08-LR
Normally In Stock
Code: 154165
Phoenix Contact 1096152 DFK-MSTB 2,5/ 2-STF-5,08-LR ,Copper Alloy,PA,I Feed-through plug *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day $7.33
Sale Price
$6.11
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1096152 A feed-through connector with a nominal cross section of 2.5 mm² has a green color and is rated for 12 A of current at a maximum voltage of 320 V. The connector features a Sn contact surface with two pins, one row, two positions, and two connections. It utilizes a screw connection with tension sleeve and has a L Slotted screw head form. The conductor/PCB connection direction is 0 °, and it uses the COMBICON MSTB 2,5 pin connector pattern alignment system for locking.
Specifications
Connector Amperage
12 Amp
Connector Voltage
4 Kv
Connector Material
I
Connector Material
PA
Connector Material
Copper Alloy
Sub Component
Connector
Manufacturer
Phoenix Contact
Connector Voltage
.21 Kv
Number of Connections
2
Component
Feed-Through
Number of Positions
2
Connector Voltage
320 Volt
Connector Voltage
250 Volt
Connector Voltage
630 Volt
Features
Well-known connection principle allows worldwide use
Cable connection on the inside of the device enables flexible positioning of the panel feed-through
Can be combined with the MSTB 2,5 range
