Code: 154103

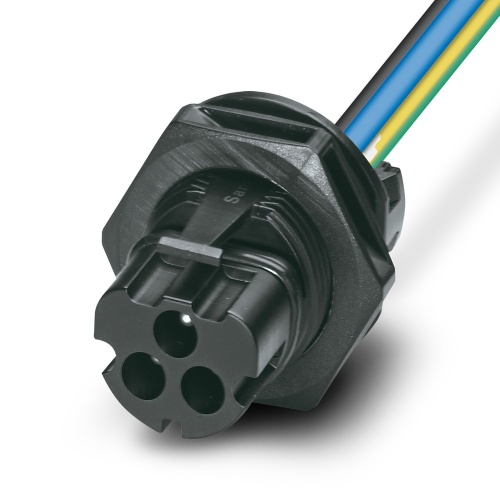

Phoenix Contact 1409220 Device connector rear mounting PRC 3-FT25-MC4-150
Normally In Stock
Phoenix Contact 1409220 - Device connector, rear mounting - 3 Positions - Cu Alloy - Black - 32 Amp - IP66 , IP68 - Crimp Connection - Snap-In Locking
Condition: New
Usually ships Same Day or Next Day $13.80
Sale Price
$11.50
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1409220 A device connector designed for rear mounting features a black color and can accommodate up to three positions, with the maximum conductor cross-section of 4 mm2. It has a rated voltage of 690 V AC and a maximum current rating of 32 A, utilizing a crimp connection method with pin-style contacts. The standard cable length is 150 units, but this item is also available in other lengths; for more information on your specific requirements, please reach out to your local Phoenix Contact CONTACT subsidiary.
Specifications
Connector Color
Black
Connector Amperage
32 Amp
Connector Material
Cu Alloy
Connector Material
PPE
Connector protection
IP66
Connector protection
IP68
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
3
Sub Component
Device Connector-Rear Mounting
Features
Up to 75% smaller in size than industrial connectors with the same rating
Locking mechanism can be unlocked manually or using a tool
Ideal for indoor and outdoor use due to weatherproof materials
Either preassembled or designed for assembly
