Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 154063

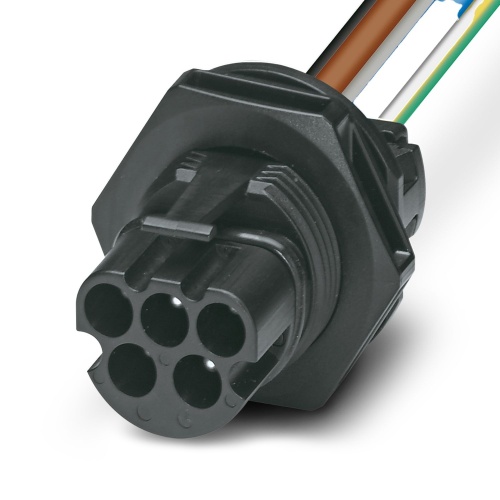

Phoenix Contact 1409213 Device connector rear mounting PRC 5-FT25-MC6-150
Normally In Stock
Phoenix Contact 1409213 - Device connector, rear mounting - 5 Positions - Cu Alloy - Black - 35 Amp - IP66 , IP68 - Crimp Connection - Snap-In Locking
Condition: New
Usually ships Same Day or Next Day $19.21
Sale Price
$16.01
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

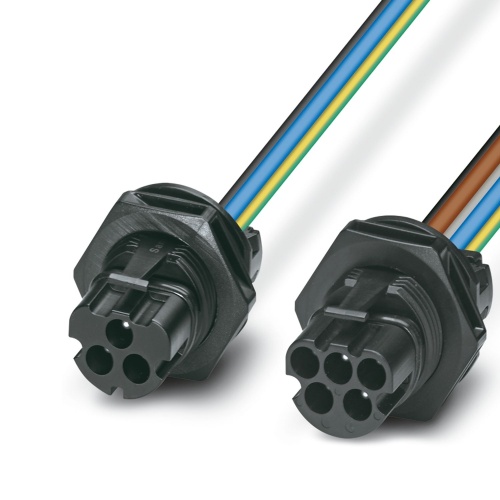

Phoenix Contact 1409213 This device connector has a rear mounting option and comes in black color with five positions to accommodate multiple articles. The maximum conductor cross-section is 6mm2, and it can handle up to 35A of rated current at a voltage of 690V AC. It uses crimp connection and pin-type contacts with a cable length of 150 units, and other lengths are available upon request from your local Phoenix Contact CONTACT subsidiary.
Specifications
Connector Color
Black
Connector Amperage
35 Amp
Connector Material
Cu Alloy
Connector protection
IP66
Connector protection
IP68
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
5
Sub Component
Device Connector-Rear Mounting
Features
Up to 75% smaller in size than industrial connectors with the same rating
Locking mechanism can be unlocked manually or using a tool
Ideal for indoor and outdoor use due to weatherproof materials
Either preassembled or designed for assembly
