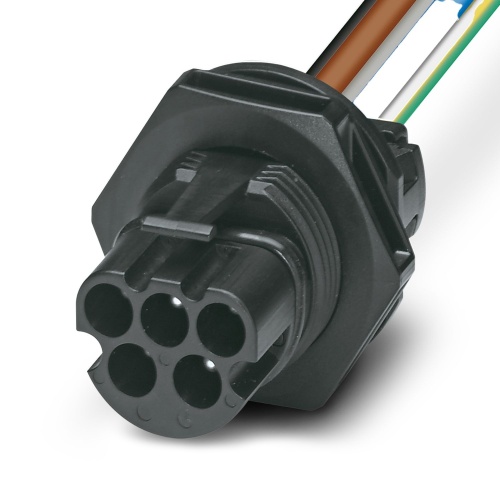

Phoenix Contact 1409211 Device connector rear mounting PRC 5-FT25-MC2,5-150
Normally In Stock
Code: 154061
Phoenix Contact 1409211 - Device connector, rear mounting - 5 Positions - Cu Alloy - Black - 24 Amp - IP66 , IP68 - Crimp Connection - Snap-In Locking
Condition: New
Usually ships Same Day or Next Day $18.41
Sale Price
$15.34
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1409211 The device connector rear mounting comes in various configurations and can be specified to meet individual needs, featuring a black finish with five positions for connectors, allowing for maximum conductor cross-sectional area of 2.5 mm² while ensuring safe operation within rated voltage limits of 690 V AC and current capacities up to 24 A; crimp connection is used with pin contact type, and comes in a standard cable length of 150 units, but can be customized to other lengths upon request from your local Phoenix Contact CONTACT subsidiary.
Specifications
Connector Color
Black
Connector Amperage
24 Amp
Connector Material
Cu Alloy
Connector Material
Silicon
Connector protection
IP66
Connector protection
IP68
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
5
Sub Component
Device Connector-Rear Mounting
Features
Up to 75% smaller in size than industrial connectors with the same rating
Locking mechanism can be unlocked manually or using a tool
Ideal for indoor and outdoor use due to weatherproof materials
Either preassembled or designed for assembly
