Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

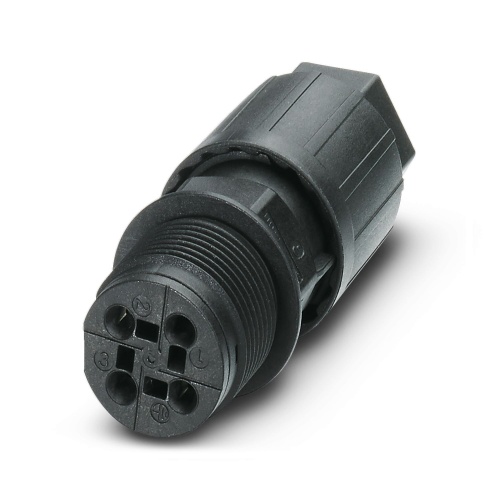

Phoenix Contact 1423977 Panel feed-through QPD W3PE2,5 6-10 M25 DT BK
Normally In Stock
Code: 154037
Phoenix Contact 1423977 - Panel feed-through - 4 Positions - Cu - 16 AWG - 20 Amp - 400 V - IP66 - Push-In Connection - Screw Locking
Condition: New
Usually ships Same Day or Next Day$20.98
Sale Price
$17.48
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1423977 The panel feed-through product family QPD features a push-in connection or IDC connection configuration with three to five pin positions, ranging from 1mm² to 2.5mm², and is rated for 400V and 20A current. It comes in various sizes, including M25, with an optional QUICKON nut for easy installation. The product is available in black color and can be coded externally, with cable diameters ranging from 6mm to 10mm.
Specifications
Component
Panel
Connector Amperage
20 Amp
Connector Material
Cu
Connector protection
IP66
Manufacturer
Phoenix Contact
Number of Positions
4
Sub Component
Panel Feed-Through
Connector Voltage
400 Volt
Features
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
Efficient - by using panel feed-throughs, devices no longer need to be opened in order to connect cables
Code: 154037
Phoenix Contact 1423977 Panel feed-through QPD W3PE2,5 6-10 M25 DT BK
$20.98
Sale Price
$17.48
