Code: 153598
Phoenix Contact 1010758 AC charging cable EV-T1G3C-1AC32A-6,5M6,0ESBK01
Normally In Stock
Phoenix Contact 1010758 EV-T1G3C-1AC32A-6,5M6,0ESBK01 ,Plastic,Metal,TPE-U charging cable
Condition: New
Usually ships Same Day or Next Day$15.88
Sale Price
$13.23
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

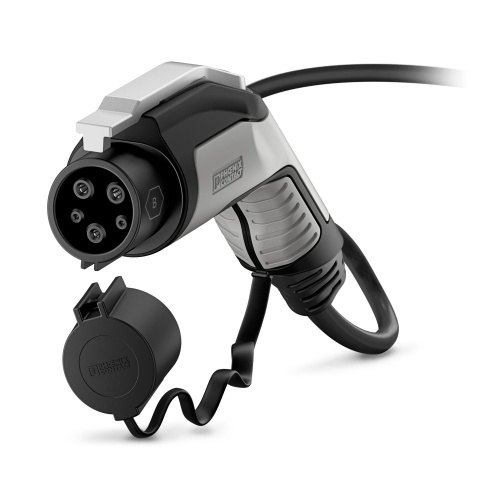

Phoenix Contact 1010758 A CHARX cable is designed to provide comfort during charging of electric vehicles, specifically suitable for Type 1 AC charging connections. It features a 32 ampere rating and can handle 250 volt AC power, with the standard vehicle charging connector attached to one end and an open cable on the other, measuring 6.5 meters in length. The cable is black in color, straight in shape, and comes equipped with a protective cap, housing that displays the Phoenix Contact CONTACT logo. It also meets international standards for AC charging of EVs, including IEC 62196-2 and SAE J1772, facilitating charging via Type 1 vehicle connectors.
Specifications
Component
Cable
Connector Amperage
32 Amp
Connector Amperage
2 Amp
Connector Material
Metal
Connector Material
Plastic
Connector Material
TPE-U
Connector protection
IP44
Manufacturer
Phoenix Contact
Sub Component
AC Charging Cable
Connector Voltage
250 Volt
Connector Voltage
30 Volt
Features
Complete product range
Convenient handling due to the ergonomic, triple award-winning design
Available with your logo on request - for consistent branding of your charging station
Longitudinal water tightness reliably prevents water ingress
Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
Tested in accordance with automotive standards LV124, LV214, and LV215-2
Tested in accordance with EV Ready 37 requirements
Laser-marked mating face in accordance with DIN EN 17186
