Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 152231

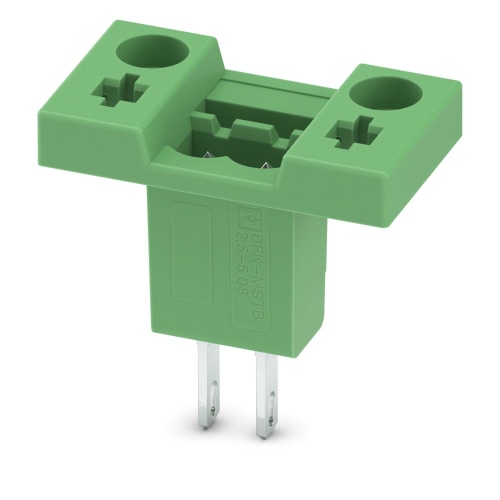

Phoenix Contact 0707248 Feed-through header DFK-MSTB 2,5/ 2-G-5,08
Normally In Stock
Phoenix Contact 0707248 DFK-MSTB 2,5/ 2-G-5,08 ,Copper Alloy,PA,I Feed-through header
Condition: New
Usually ships Same Day or Next Day $2.87
Sale Price
$2.39
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 0707248 The feed-through header has a nominal cross-sectional area of 2.5mm², is colored green, and is rated for a maximum current of 12A with a voltage of up to 320V. The contact surface material is tin and the connection type is pin-based, with two potentials and one row of positions, featuring a linear pinning layout and solder connections with no locking mechanism, packaged in cardboard with accessory item No. 5030172 suitable for use with MSTB 2,5/...ST-5.08 and MSTBT 2,5/...ST-5.08 systems only.
Specifications
Connector Amperage
12 Amp
Connector Amperage
7.5 Amp
Connector Voltage
4 Kv
Connector Material
I
Connector Material
PA
Connector Material
Copper Alloy
Component
Feed-Through Header
Manufacturer
Phoenix Contact
Number of Connections
2
Number of Positions
2
Connector Voltage
320 Volt
Connector Voltage
630 Volt
Features
Cable connection on the inside of the device enables flexible positioning of the panel feed-through
Free choice – permanent solder connection or standardized slip-on connection
Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
