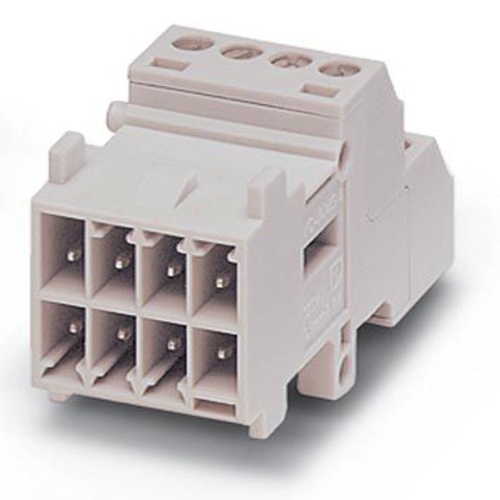

Phoenix Contact 1583568 Contact insert VC-AMS 8-PE
Normally In Stock
Code: 152024
Phoenix Contact 1583568 - Contact insert - VARIOCON - 8 Positions - CuMg - 28 AWG - Light gray - 10 Amp - 160 V - Screw Connection
Condition: New
Usually ships Same Day or Next Day $22.15
Sale Price
$18.46
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1583568 The contact insert is a part of the VARIOCON series with a light gray color and features eight pin contacts, accommodating conductor cross sections ranging from 0.14 mm2 to 1.5 mm2, making it suitable for applications up to 160V and 10A rated current, secured through screw connection, specifically designed for pin-style connections that can only be connected or disconnected when the system is not under load.
Specifications
Connector Amperage
10 Amp
Connector Color
Light Gray
Component
Contact Insert
Manufacturer
Phoenix Contact
Connector Material
Cumg
Number of Positions
8
Connector Voltage
160 Volt
Features
Proven COMBICON technology
Universal connection
Can be keyed to prevent incorrect connection
