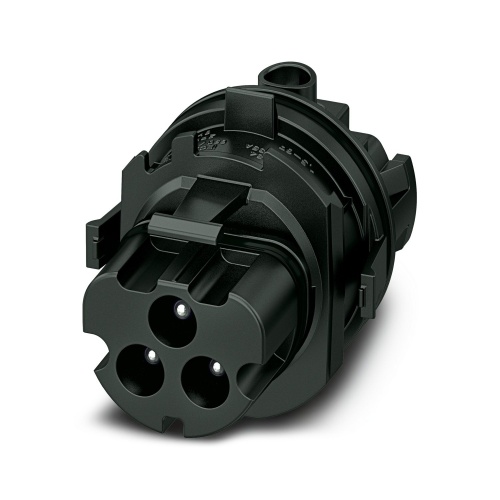

Phoenix Contact 1070200 Contact carrier PRC 3-HEAD-MS6-2
Normally In Stock
Code: 151996
Phoenix Contact 1070200 - 3 Positions - Cu Alloy - Black - 35 Amp - IP66 , IP68 - Screw Connection - Snap-In Locking
Condition: New
Usually ships Same Day or Next Day$6.20
Sale Price
$5.17
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1070200 For a PRC 35 contact carrier with a black color scheme and featuring three positions, the minimum and maximum conductor cross-sections should be between 1.5 mm2 and 6 mm2. The product is rated for 690 V AC operation and can handle a maximum current of 35 A. Connections are made using screw fasteners, while the contact type utilizes pin inserts without any connector housing - please refer to the accessories list to select the necessary connector housings accordingly.
Specifications
Connector Color
Black
Connector Amperage
35 Amp
Connector Material
Cu Alloy
Connector Material
EPDM
Component
Contact Insert
Connector protection
IP66
Connector protection
IP68
Manufacturer
Phoenix Contact
Number of Positions
3
Sub Component
Contact Carrier
Features
Versatile interfaces with straight and angled connector housings
Universal accommodation of existing connector heads with screw connection technology
Modular system for optimized storage
Locking mechanism can be unlocked manually or using a tool
Ideal for indoor and outdoor use due to weatherproof materials
