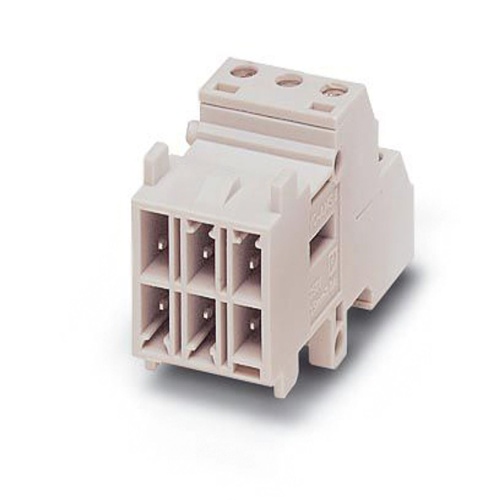

Phoenix Contact 1583555 Contact insert VC-AMS 6-PE
Normally In Stock
Code: 151989
Phoenix Contact 1583555 - Contact insert - VARIOCON - 6 Positions - CuMg - 28 AWG - Light gray - 10 Amp - 250 V - Screw Connection
Condition: New
Usually ships Same Day or Next Day $17.24
Sale Price
$14.37
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1583555 The specified contact insert is for use with VARIOCONE articles and features a light gray color. It has six positions, ranging from a minimum conductor cross-section of 0.14 mm2 to a maximum of 1.5 mm2. The rated voltage for this contact insert is 250 volts, while the maximum current it can handle is 10 amperes. Connection is achieved through a screw connection method with pin type contacts. Importantly, connectors must be connected or disconnected only when no load is applied.
Specifications
Connector Amperage
10 Amp
Connector Color
Light Gray
Component
Contact Insert
Manufacturer
Phoenix Contact
Connector Material
Cumg
Number of Positions
6
Connector Voltage
250 Volt
Features
Proven COMBICON technology
Universal connection
Can be keyed to prevent incorrect connection
